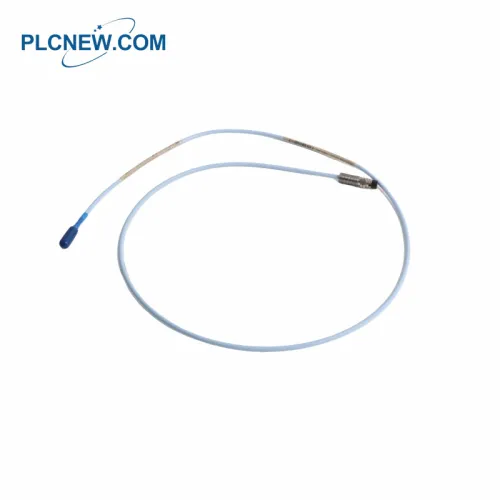

Bently Nevada 330101-00-13-10-02-00 3300 XL 8 mm Proximity Probe

Bently Nevada 330101-00-13-10-02-00 3300 XL 8 mm Proximity Probe

The Bently Nevada 330101-00-13-10-02-00 3300 XL 8 mm Proximity Probe is a

highly reliable and accurate sensor used for non-contact measurement of

vibration, displacement, and position in rotating machinery such as turbines,

compressors, and motors. As part of the 3300 XL series, it is widely used in

industrial applications for machinery protection and condition monitoring, providing

precise real-time data to ensure the continuous and safe operation of critical equipment.

Key Features:
8 mm Tip Diameter: Standard probe size for general-purpose applications, ensuring

precise and reliable measurement of shaft vibration and displacement.
Durable Construction: Engineered to withstand harsh industrial conditions,

including exposure to oil, dust, and high temperatures, making it suitable for

long-term operation in challenging environments.
Non-Contact Measurement: Allows for accurate measurement of the distance between

the probe and a conductive target (such as a rotating shaft) without physical contact,

reducing wear and extending probe life.
System Compatibility: Seamlessly integrates with Bently Nevada's 3300 XL

Proximitor® Sensors and monitoring systems, offering consistent and dependable

condition monitoring for critical machinery.

Key Parameters:
Probe Length: 10 meters (denoted by "10" in the model number), allowing

installation flexibility and suitability for long-distance applications.
System Length: 13 meters (including the probe and extension cable), ideal for

setups requiring extended reach between the probe and the monitoring system.
Tip Diameter: 8 mm, which is standard for the 3300 XL series and widely used in

industrial machinery monitoring applications.
Thread Size: 3/8-24 UNF, providing secure mounting in a variety of

installation configurations.
Linear Range: 80 mils (2 mm), offering precise measurements of displacement for

machinery diagnostics.
Operating Temperature: -34°C to +177°C (-30°F to +350°F), ensuring

consistent performance in extreme environmental conditions.
