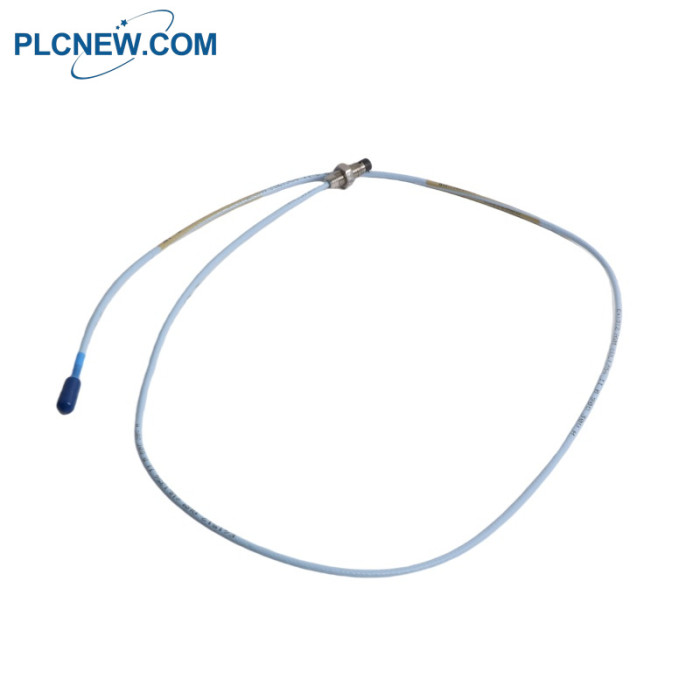

Bently Nevada 330101-00-71-05-01-05 Proximity Probes

Bently Nevada 330101-00-71-05-01-05 Proximity Probes

Bently Nevada 330101-00-71-05-01-05 Specification

A: Unthreaded Length Option
Order in increments of 0.1 in.
Length configurations:
Maximum unthreaded length: 8.8 in.
Minimum unthreaded length: 0.0 in.
Example: 0 4 = 0.4 in

B: Overall Case Length Option
Order in increments of 0.1 in.
Standard thread configurations:
Maximum case length: 9.6 in.
Minimum case length: 0.8 in.
Example: 2 4 = 2.4 in

C: Total Length Option
05：0.5 meter (1.6 feet)
10：1.0 meter (3.3 feet)
15：1.5 meter (4.9 feet)
20：2.0 meters (6.6 feet)
30：3.0 meters (9.8 feet)
50：5.0 meters (16.4 feet)
90：9.0 meters (29.5 feet)

Bently Nevada 330101-00-71-05-01-05 Description

The output voltage provided by the system is directly proportional to

the distance between the probe tip and the observed point. The system

measures both static (position) and dynamic (vibration) values, with the

output voltage being proportional to the distance between the probe tip

and the observed conductive surface.

This system is primarily used for vibration and position measurement of

fluid film bearing machines, as well as Keyphasor* reference and speed

measurements.
The 330101-00-71-05-01-05 3300 XL 8 mm system features the most

advanced performance in eddy current proximity sensor technology. The

standard 3300 XL 8 mm 5-meter system fully complies with the American

Petroleum Institute (API) 670 standard (Fourth Edition), including mechanical

configuration, linear range, accuracy, and temperature stability.

All 330101-00-71-05-01-05 3300 XL 8 mm proximity sensor systems offer

 this performance level and support complete interchangeability of the probe,

extension cable, and Proximitor sensor without the need to match or calibrate

individual components.

Each 330101-00-71-05-01-05 3300 XL 8 mm sensor system component is

backward compatible and interchangeable with other non-XL sensor system

components. This compatibility extends to 3300 5 mm probes, making it suitable

for applications where the 8 mm probe is too large to fit within existing installation space.
