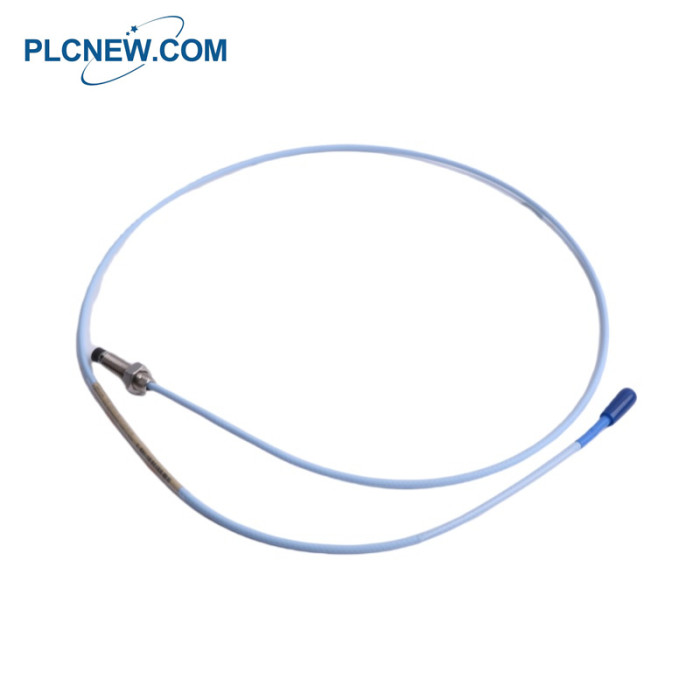

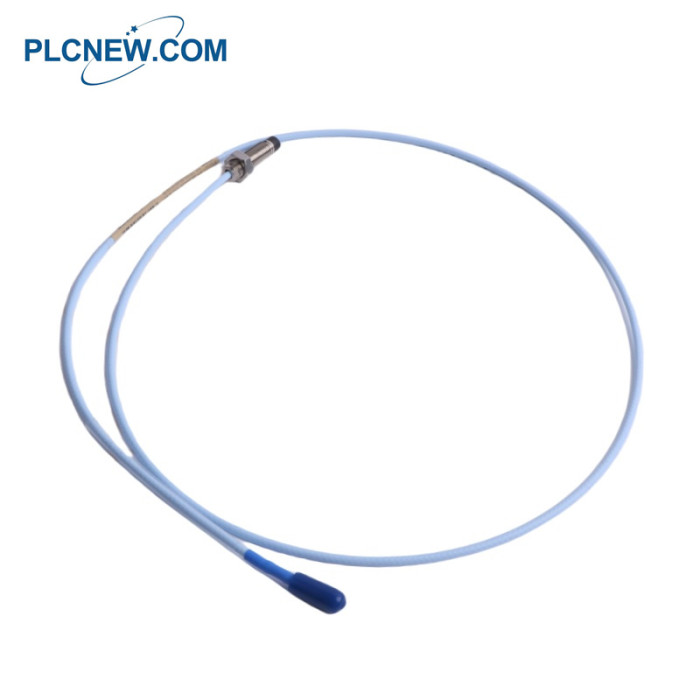

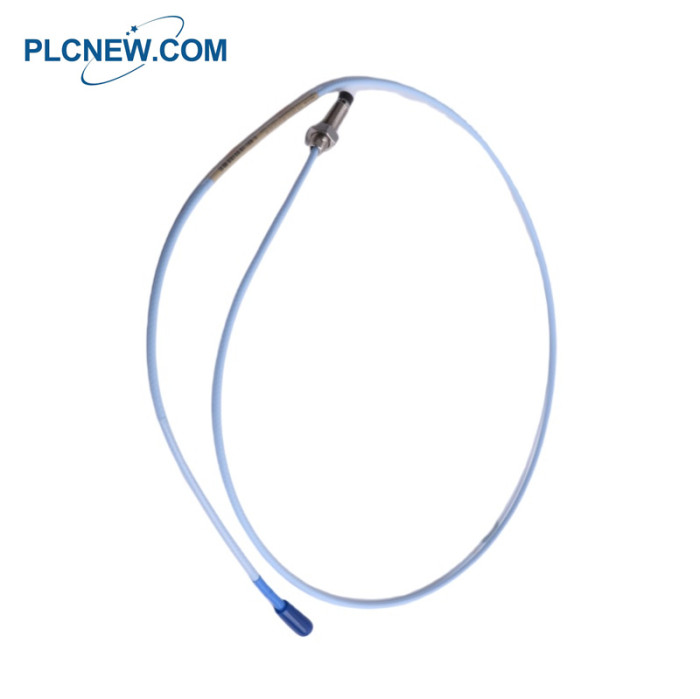

Bently Nevada 330101-13-37-10-12-05 3300 XL 8 mm Proximity Probes

Bently Nevada 330101-13-37-10-12-05 3300 XL 8 mm Proximity Probes

Bently Nevada 330101-13-37-10-12-05 Specification

Part Number:330101-13-37-10-12-05
Type:3300 XL 8 mm Proximity Probes
Manufacturer:Bently Nevada
Condition:New & Original in Factory Packing
Factory Warranty:12 Months

Bently Nevada 330101-13-37-10-12-05 Description

The 3300 XL 8 mm proximity sensor system consists of the following components:
One 3300 XL 8 mm probe,
One 3300 XL extension cable, and
One 3300 XL Proximitor* sensor.

The output voltage provided by the system is directly proportional to the distance

 between the probe tip and the observed point. The system measures both static

(position) and dynamic (vibration) values, with the output voltage being proportional

to the distance between the probe tip and the observed conductive surface.

This system is primarily used for vibration and position measurement of fluid film

bearing machines, as well as Keyphasor* reference and speed measurements.
The 330101-13-37-10-12-05 3300 XL 8 mm system features the most advanced

performance in eddy current proximity sensor technology. The standard 3300 XL 8 mm

5-meter system fully complies with the American Petroleum Institute (API) 670 standard

(Fourth Edition), including mechanical configuration, linear range, accuracy, and temperature stability.

All 330101-13-37-10-12-05 3300 XL 8 mm proximity sensor systems offer this performance

level and support complete interchangeability of the probe, extension cable, and Proximitor

sensor without the need to match or calibrate individual components.

Each 330101-13-37-10-12-05 3300 XL 8 mm sensor system component is backward compatible

and interchangeable with other non-XL sensor system components. This compatibility extends to

3300 5 mm probes, making it suitable for applications where the 8 mm probe is too large to fit within

existing installation space.
