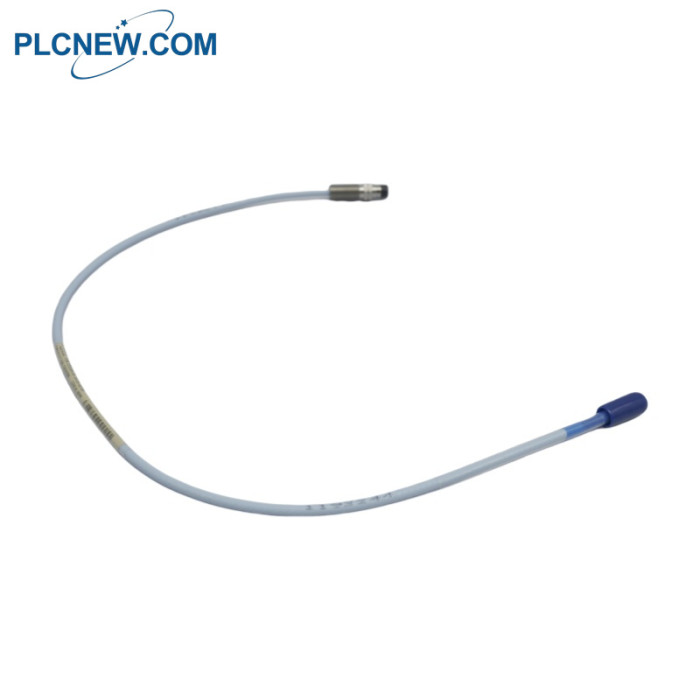

Bently Nevada 330102-00-20-50-02-00 3300 XL 8 mm Proximity Probes

Bently Nevada 330102-00-20-50-02-00 3300 XL 8 mm Proximity Probes

Bently Nevada 330102-00-20-50-02-00 Specification

Manufacturer : Bently Nevada
Product No. : 330102-00-20-50-02-00
Product Type : 3300 XL 8 mm Proximity Probes
3300 XL 8 mm Probe, 3/8-24 UNF thread, with armor
Unthreaded Length Option : 00 = 0 in
Overall Case Length Option : 20 = 2 in
Total Length Option : 50 = 5.0 metres (16.4 feet)1
Connector and Cable-Type Option : 0 2 = Miniature coaxial ClickLocTM connector, standard cable
Agency Approval Option : 00 = Not required
Weight : 0.323 Kg

Bently Nevada 330102-00-20-50-02-00 Description

The 3300 XL 8 mm Proximity Transducer System consists of:
One 3300 XL 8 mm probe,
One 3300 xL extension cablei, and
One 3300 XL Proximitor" Sensor2.

The system provides an output voltage that is directly proportional to thedistance

between the probe tip and the observed conductive surface and canmeasure both

static lposition) and dynamic (vibration) values. The system'sprimary applications are

vibration and position measurements on fluid-filmbearing mochines, as well as Keyphasor"

reference and speed measurements3The 3300 XL 8 mm system delivers the most advanced

performance in our eddycurrent proximity tronsducer systems. The standard 3300 XL 8 mm

5-metresystem also fully complies with the American Petroleum Institute's (APl) 670Standard

(4th Edition) for mechanical configurotion, linear range, accuracy, andtemperature stability,

All 3300 XL 8 mm proximity transducer systems providethis level of performance and support

complete interchangeability of probesextension cables, and Proximitor sensors, eliminating

the need to match orbench calibrate individual components

Each 330102-00-20-50-02-00 3300 XL8 mm Transducer System component is backward-compatible

andinterchangeable* with other non-XL 3300 series 5 mm ond 8 mm tronsducersystem componentss

This compatibility includes the 3300 5 mm probe, forapplications in which an 8 mm probe is too

large for the available mounting space.

Proximitor Sensor
The 330102-00-20-50-02-00 3300 XL Proximitor Sensor incorporates numerous improvements

overprevious designs. lts physical packaging allows you to use it in high-density DlNrail installotions.

You can also mount the sensor in a traditional ponel mountconfiguration, where it shares an identical

4-hole mounting "footprint" with oldeProximitor Sensor designs. The mounting base for either option

provideselectrical isolation and eliminates the need for separate isolator plates. The 3300XL Proximitor

Sensor is highly immune to radio frequency interference, allowingyou to install it in fiberglass housings

without adverse effects from nearby radicfrequency signals. The 3300 XL Proximitor Sensor's improved

RFl/EMl immunitysatisfies European CE mark approvals without requiring speciol shielded conduitor

metallic housings, resulting in lower installation costs and complexity
The 3300 XL's SpringLoc terminal strips require no special installation tools anofacilitate foster, more

robust field wiring connections by eliminating screw-typeclamping mechanisms that can loosen.
