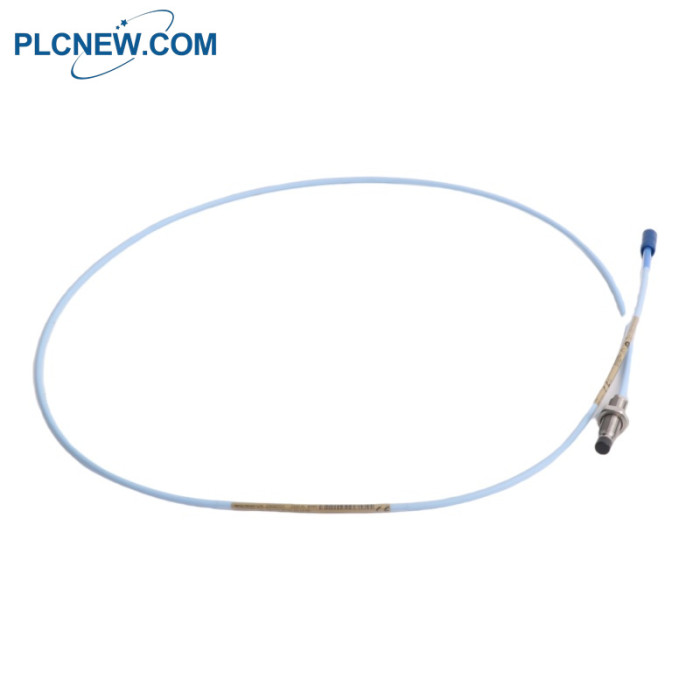

Bently Nevada 330103-00-04-50-02-00 3300 XL 8 mm Proximity Probes

Bently Nevada 330103-00-04-50-02-00 Specification
Manufacturer : Bently-Nevada
Product No. : 330103-00-04-50-02-00
Product type : 3300 XL 8 mm Proximity Probes
Unthreaded Length Option : 00 = 0mm
Overall Case Length Option : 04 = 40 mm
Total Length Option : 50 = 5.0 metres (16.4 feet)
Connector and Cable-Type Option : 02 = Miniature coaxial ClickLocTM connector, standard cable
Agency Approval Option : 00 = Not required

A: Unthreaded Length Option
Order in increments of 10 mm
Length configurations:
Maximum unthreaded length: 230 mm
Minimum unthreaded length: 0 mm
Example: 0 6 = 60 mm

B: Overall Case Length Option
Order in increments of 10 mm
Metric thread configurations:
Maximum case length: 250 mm
Minimum case length: 20 mm
Example: 0 6 = 60 mm

C: Total Length Option
05：0.5 meter (1.6 feet)
10：1.0 meter (3.3 feet)
15：1.5 meter (4.9 feet)
20：2.0 meters (6.6 feet)
50：5.0 meters (16.4 feet)
90：9.0 meters (29.5 feet)

Bently Nevada 330103-00-04-50-02-00 Description
The 3300 XL 8 mm Proximity Transducer System consists of:
One 3300 XL 8 mm probe.
One 3300 XL extension cable1, and
One 3300 XL Proximitor* Sensor2.
The system provides an output voltage that is directly proportional to the distance between

the probe tip and the observed conductive surface and canmeasure both static (position)

and dynamic (vibration) values. The system'sprimary applications are vibration and position

measurements on fluid-filmbearing machines, as well as Keyphasor* reference and speed

measurements3The 3300 XL 8 mm system delivers the most advanced performance in our

eddy current proximity transducer systems. The standard 3300 XL 8 mm 5-metresystem also

fully complies with the American Petroleum institute's (APl) 670Standard (4th Edition) for

mechanical configuration, linear range, accuracy, andtemperature stability. All 3300 XL 8 mm

proximity transducer systems providethis level of performance and support complete interchangeability

of probesextension cables, and Proximitor sensors, eliminating the need to match orbench calibrate

individual components
Each 3300 XL 8 mm Transducer System component is backward-compatible andinterchangeable*

with other non-XL 3300 series 5 mm and 8 mm transducersystem componentss. This compatibility

includes the 3300 5 mm probe, forapplications in which an 8 mm probe is too large for the available mountingspace
