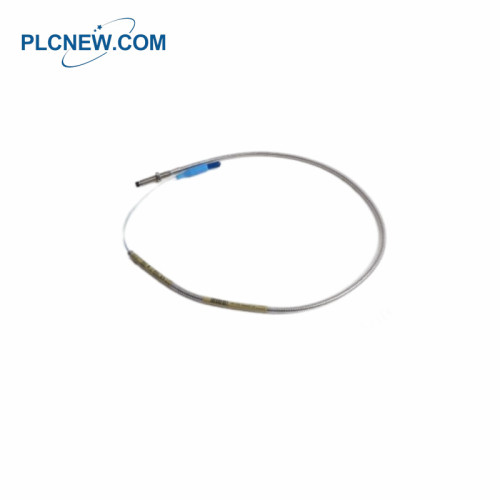

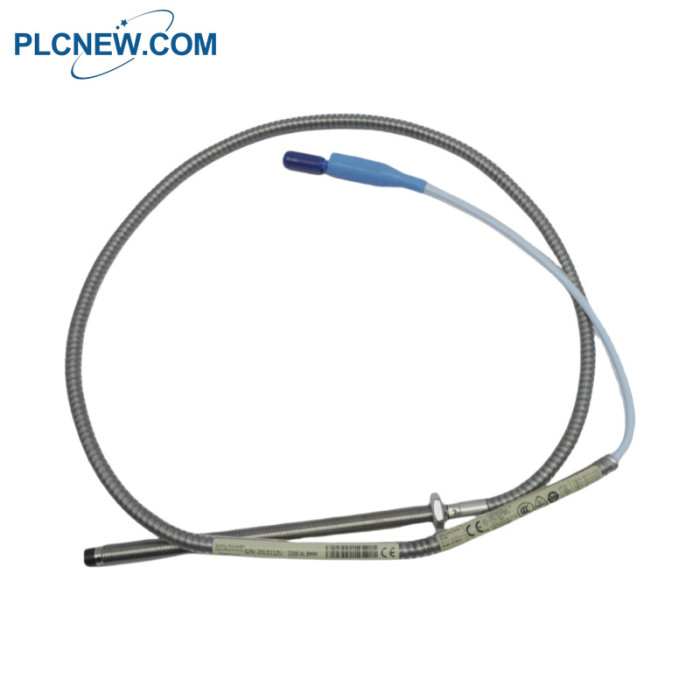

Bently Nevada 330104-00-05-10-02-05 3300 Proximity Probes

Bently Nevada 330104-00-05-10-02-05 3300 Proximity Probes

Bently Nevada 330104-00-05-10-02-05 Specification

Part Number: 330104-00-05-10-02-05
Model: 3300 XL 8 mm Proximity Probes
Brand: Bently Nevada
Condition: New & Original in Factory Packing
Factory Warranty: 12 Months

Bently Nevada 330104-00-05-10-02-05 Description

The 3300 XL 8 mm Proximity Transducer System consists of:
-One 3300 XL 8 mm probe,
-One 3300 XL extension cable1, and
-One 3300 XL Proximitor* Sensor

The system provides an output voltage that is directly proportional to the

distance between the probe tip and the observed conductive surface and

can measure both static (position) and dynamic (vibration) values. The

system’s primary applications are vibration and position measurements on

fluid-film bearing machines, as well as Keyphasor* reference and speed measurements.

The 3300 XL 8 mm system delivers the most advanced performance in our

eddy current proximity transducer systems. The standard 330104-00-05-10-02-05

3300 XL 8 mm 5-metre system also fully complies with the American Petroleum

Institute’s (API) 670 Standard (4th Edition) for mechanical configuration, linear range,

accuracy, and temperature stability. All 330104-00-05-10-02-05 3300 XL 8 mm proximity

 transducer systems provide this level of performance and support complete interchangeability

of probes, extension cables, and Proximitor sensors, eliminating the need to match or bench

calibrate individual components.

Each 330104-00-05-10-02-05 3300 XL 8 mm Transducer System component is backward-compatible

and interchangeable4 with other non-XL 3300 series 5 mm and 8 mm transducer system components.

This compatibility includes the 3300 5 mm probe, for applications in which an 8 mm probe is too large

for the available mounting space.
