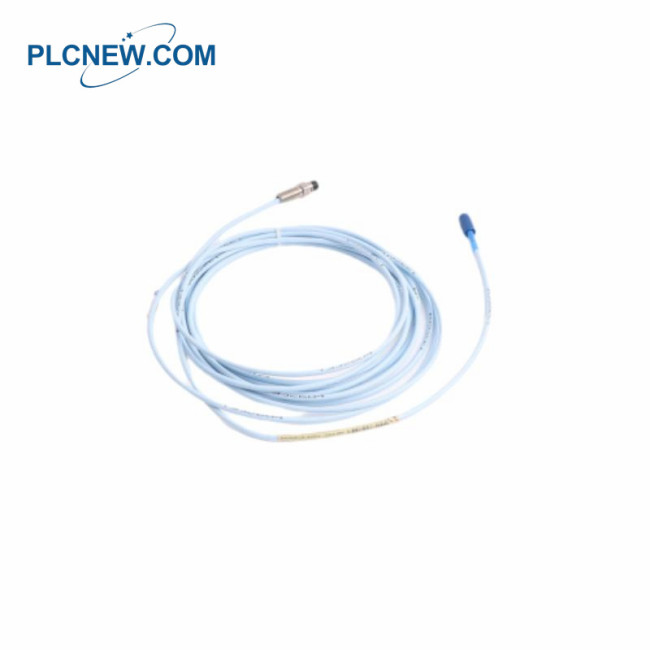

The Bently Nevada 330106-05-30-10-02-05 3300 XL 8 mm Reverse Mount Probes

are specialized sensors used for precise measurement of shaft displacement, vibration,

and position in rotating machinery. As part of the Bently Nevada 3300 XL series,

these reverse mount probes are designed for use in applications where traditional

mounting configurations are not feasible.

Key Features:
Reverse Mount Design: Specifically engineered for applications where the probe must

be mounted in reverse or unconventional orientations, allowing for flexible installation

in tight or difficult spaces.
8 mm Tip Diameter: Standard size suitable for general-purpose applications,

providing accurate and reliable measurements of shaft displacement and vibration.
High Durability: Constructed to withstand harsh operating conditions, including

high temperatures, dust, oil, and other contaminants, ensuring long-term reliability.
Non-Contact Measurement: Measures the distance between the probe and a conductive

target (such as a rotating shaft) without physical contact, reducing wear and extending

the probe’s life.

Key Parameters:
Probe Length: 10 meters (denoted by “10” in the model number), providing flexibility

for various installation configurations and distances from the measurement point.
System Length: 30 meters (denoted by “30” in the model number), including the probe

and extension cable, suitable for long-distance installations.
Tip Diameter: 8 mm, standard for the 3300 XL series and ideal for general industrial applications.
Thread Size: Typically 3/8-24 UNF, ensuring secure mounting in various configurations.
Linear Range: Designed to measure up to 80 mils (2 mm) of linear displacement,

offering precise measurement capabilities.
Operating Temperature: Typically ranges from -34°C to +177°C (-30°F to +350°F),

suitable for extreme environmental conditions.
Frequency Response: Capable of measuring high-frequency vibrations, providing

accurate data even in rapidly rotating machinery.
