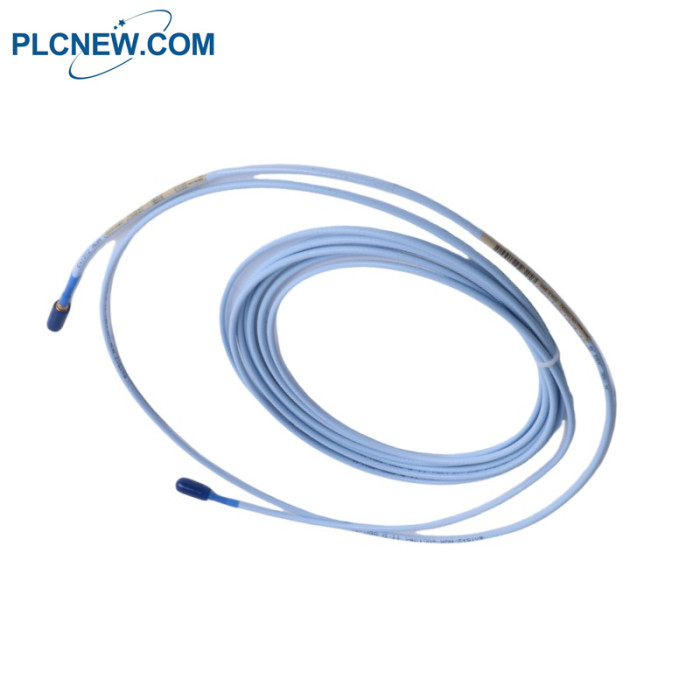

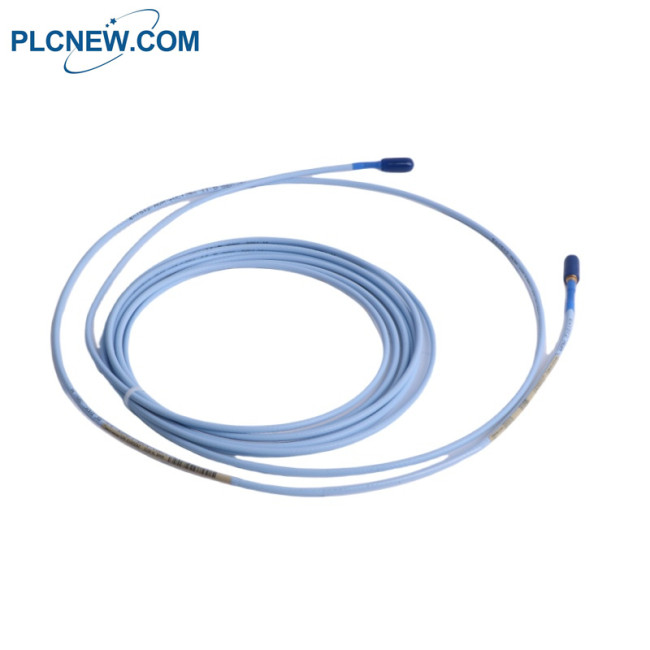

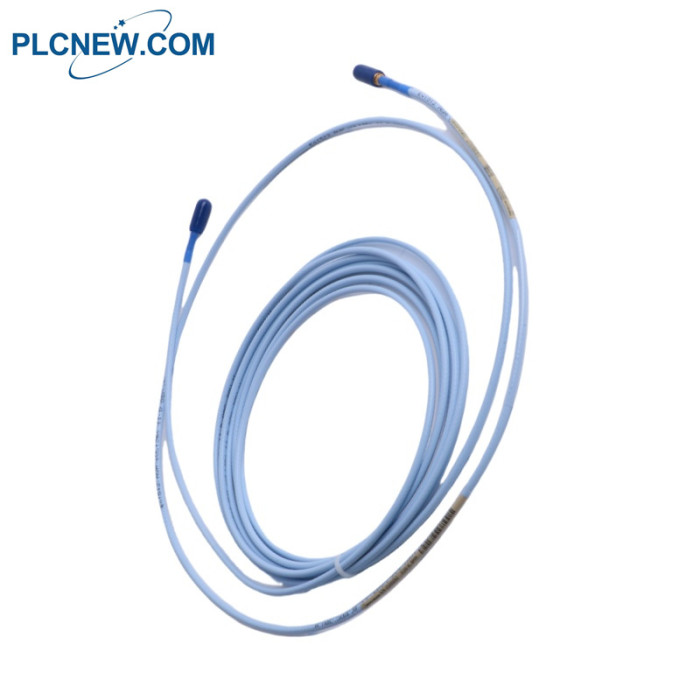

Bently Nevada 330130-080-00-CN 3300 XL Standard Extension Cable

Bently Nevada 330130-080-00-CN Specification

Manufacturer : Bently Nevada
Product No. : 330130-080-00-CN
Product type : 3300 XL Standard Extension Cable
Cable Length Option : 080 = 8.0 metres (26.2 feet)
Connector Protector and Cable Option : 00 = Standard cable
Extension cable capacitance : 69.9 pF/m (21.3 pF/ft) typical\

Extension Cable Material : 75  triaxial, fluoroethylene

propylene (FEP) insulated.

The 3300 XL 8 mm Proximity Transducer System consists of:
One 3300 XL 8 mm probe,
One 3300 XL extension cablel, and
One 3300 XL Proximitor Sensor.
The system provides an output voltage that is directly proportional

to thedistance between the probe tip and the observed conductive

surface and canmeasure both static (position) and dynamic (vibration)

values. The system'sprimary applications are vibration and position

measurements on fluid-filmbearing machines, as well as Keyphasor

reference and speed measurements3The 3300 XL 8 mm system delivers

the most advanced performance in our eddycurrent proximity transducer

systems. The standard 3300 XL 8 mm 5-metresystem also fully complies

with the American Petroleum institute's (APl) 670Standard (4th Edition)

for mechanical configuration, linear range, accuracy, andtemperature stability,

All 3300 XL 8 mm proximity transducer systems providethis level of

performance and support complete interchangeability of probes.extension cables,

and Proximitor sensors, eliminating the need to match orbench calibrate individual components
Each 3300 XL 8 mm Transducer System component is backward-compatible andinterchangeable* with other non-XL 3300 series 5 mm and 8 mm

transducersystem componentss. This compatibility includes the 3300 5 mm probe, forapplications in which an 8 mm probe is too large for the available mountingspace.

Contact information

Welcome to contact→【Sales Manager】:Lisa

 sales7@amikon.cn      86-18965423501   86-18965423501   AMKPLC

Please note that here is only part of the model, if you have the need, please contact us.
