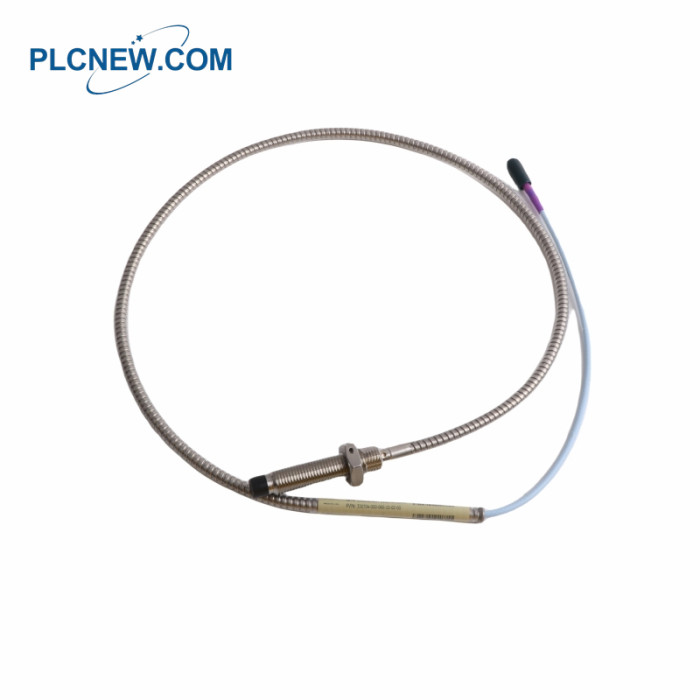

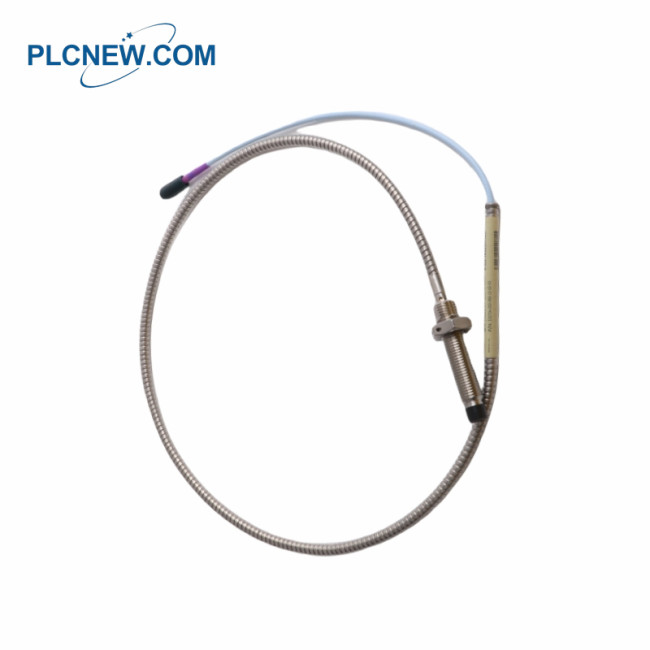

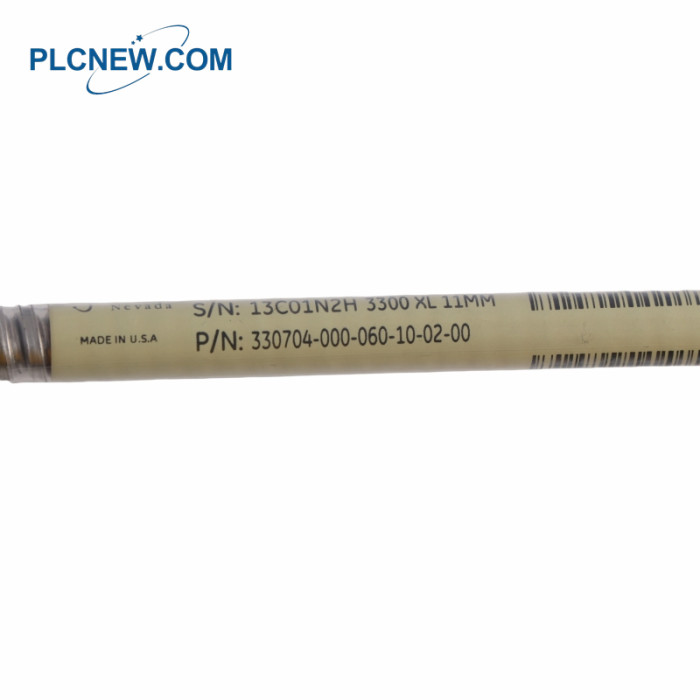

Bently Nevada 330704-000-060-10-02-00 Proximity Probes

Bently Nevada 330704-000-060-10-02-00 Proximity Probes

Bently Nevada 330704-000-060-10-02-00 Specification

Brand:Bently Nevada
Model: 330704-000-060-10-02-00
Type:Proximity Probes
Operating Range:11mm
Detection Type:Proximity
Output Signal:Digital
Operating Temperature:-40°C to +85°C
Mounting Style:Magnetic Base
Material:Stainless Steel
Wire Length:5m
Connectivity:2-Wire
Weight:0.16kg
Dimensions:114.5x2.5x2cm
Communication Protocol:Modbus RTU
Operating Temperature:-40°C to +85°C
Humidity Range:5% to 95% non-condensing

Bently Nevada 330704-000-060-10-02-00 Description

The 3300 XL 11 mm Proximitor Sensor is designed to replace the 7200-series 11 mm

and 14 mm Transducer Systems. When upgrading from the 7200-series system to

the 3300 XL 11 mm system, every component must be replaced with 3300 XL 11

mm components. In addition, the monitoring system must be updated. If using a

3500 Monitoring System, an updated version of the configuration software that lists

the 3300 XL 11 mm Transducer System as a compatible option is required. Existing

3300 Monitoring Systems may need a modification. Contact your local sales and

service representative for assistance.

Proximitor Sensor
The 3300 XL 11 mm Proximitor Sensor has the same advanced features found in the

3300 XL 8 mm Proximitor Sensor. Its thin design allows it to be mounted in either a

high-density DIN-rail installation or a more traditional panel mount configuration.

Improved RFI/EMI immunity allows the 3300 XL Proximitor Sensor to achieve

European CE mark approvals without any special mounting considerations. This

RFI immunity also prevents the transducer system from being adversely affected

by nearby high frequency radio signals. SpringLoc terminal strips on the Proximitor

Sensor require no special installation tools and facilitate faster, highly robust field

wiring connections.

Proximity Probe and Extension Cable
The 3300 XL 11 mm probe comes in varying probe case configurations, including

armored and unarmored ½-20, 5 ⁄ 8 -18, M14 X 1.5 and M16 X 1.5 probe threads.

The reverse mount 3300 XL 11 mm probe comes standard with either 3 ⁄ 8 -24 or

M10 X 1 threads. All components of the transducer system have gold-plated

brass ClickLoc™ connectors. ClickLoc connectors lock into place, preventing

the connection from becoming loose. The patented TipLoc™ molding method

provides a robust bond between the probe tip and the probe body. The probe cable

is securely attached to the probe tip utilizing our patented CableLoc™ design that

provides 330 N (75 lb) pull strength.

3300 XL Probes and Extension Cables can also be ordered with a FluidLoc® cable

option. This option prevents oil and other liquids from leaking out of the machine

through the cable’s interior. The connector protector option provides additional

protection of the connectors in a humid or moist environment.
Connector protectors are recommended for all installations and provide

increased environmental protection 2 . Additionally, the 3300 XL 11 mm

probe comes standard with a locknut with predrilled safety wire holes.
