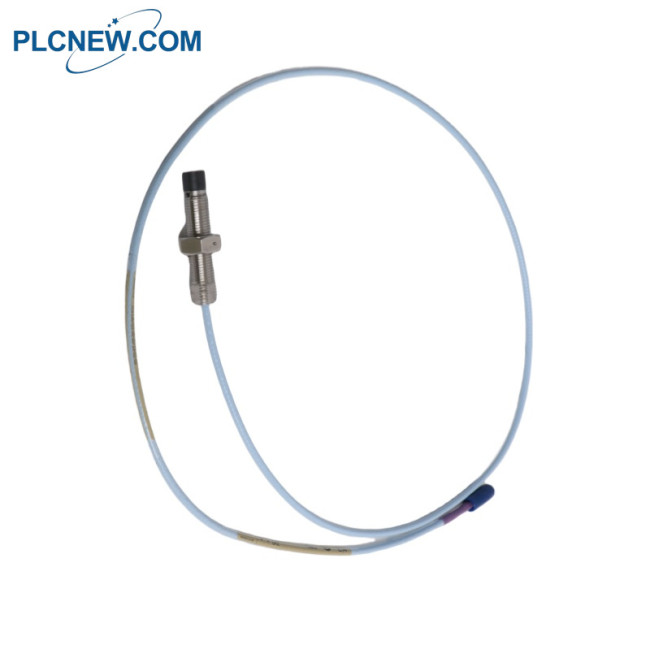

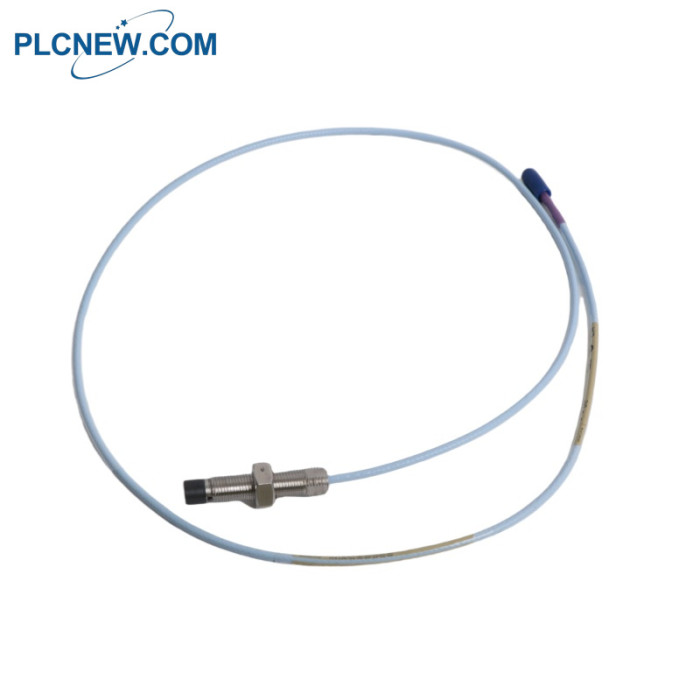

Bently Nevada 330708-00-20-50-02-00 3300 XL 11 mm Probe

Bently Nevada 330708-00-20-50-02-00 3300 XL 11 mm Probe

Bently Nevada 330708-00-20-50-02-00 Specification

A: Unthreaded Length Option
Order in increments of 0.1 in
Length configurations:
Maximum unthreaded length: 8.8 in
Minimum unthreaded length: 0.0 in
Example: 0 4 = 0.4 in

B: Overall Case Length Option
Order in increments of 0.1 in
Threaded length configurations:
Maximum case length: 9.6 in
Minimum case length: 0.8 in
Example: 2 4 = 2.4 in

C: Total Length Option
0 5：0.5 metre (1.6 feet)
1 0：1.0 metre (3.3 feet)
1 5：1.5 metre (4.9 feet)
2 0：2.0 metres (6.6 feet)
3 0：3.0 metres (9.8 feet)
5 0：5.0 metres (16.4 feet)
9 0：9.0 metres (29.5 feet)

Bently Nevada 330708-00-20-50-02-00 Description

The 3300 XL 11 mm Proximity Transducer System consists of:
-3300 XL 11 mm probe
-3300 XL 11 mm extension cable
-3300 XL 11 mm Proximitor Sensor

The 330708-00-20-50-02-00 3300 XL 11 mm Proximity

Transducer System has a 3.94 V/mm (100 mV/mil) output for

non-contacting vibration and displacement measurements on

fluid film bearing machines. The large 11 mm tip enables this

transducer system to have a longer linear range compared to

our standard 3300 XL 8 mm Transducer System. It is primarily

used in the following applications where the longer linear range

is necessary:
-Axial (thrust) position measurements
-Ramp differential expansion measurements on steam turbines
-Rod position or rod drop measurements on reciprocating compressors
-Tachometer and zero speed measurements
-Phase reference (Keyphasor) signals

The 330708-00-20-50-02-00  3300 XL 11 mm Proximitor Sensor

is designed to replace the 7200-series 11 mm and 14 mm Transducer

Systems. When upgrading from the 7200-series system to the 3300

XL 11 mm system, every component must be replaced with 3300 XL

11 mm components. In addition, the monitoring system must be updated.

If using a 3500 Monitoring System, an updated version of the configuration

software that lists the 3300 XL 11 mm Transducer System as a compatible

option is required. Existing 3300 Monitoring Systems may need a modification.

Contact information

Welcome to contact→【Sales Manager】:Lisa

 sales7@amikon.cn      86-18965423501   86-18965423501   AMKPLC

Please note that here is only part of the model, if you have the need, please contact us.

Packing & Shipping
1. All the goods will be tested before shipment.
2. New and origin factory individual sealed inner box
3. We can ship to you by DHL/TNT/UPS/EMS/Fedex..
4. Pls contact us directly and we will ship as your requirement.

5. We will ship the items within 3 working days after the payment is reached

FAQ:

1. Are your product brand-new and original?
Yes,100% brand-new and original products.
2.How long is the quality guarantee for your products?
All our products with 1 year warranty.
3.When will you delivery the goods?
With stock, we will arrange delivery in about 3 to 5 days; without stock,
it will take relatively
long time, but it won't be too long, it mainly depends on order quantity.
4.What are your terms of payment?
Generally through T/T, western union and PayPaL.
