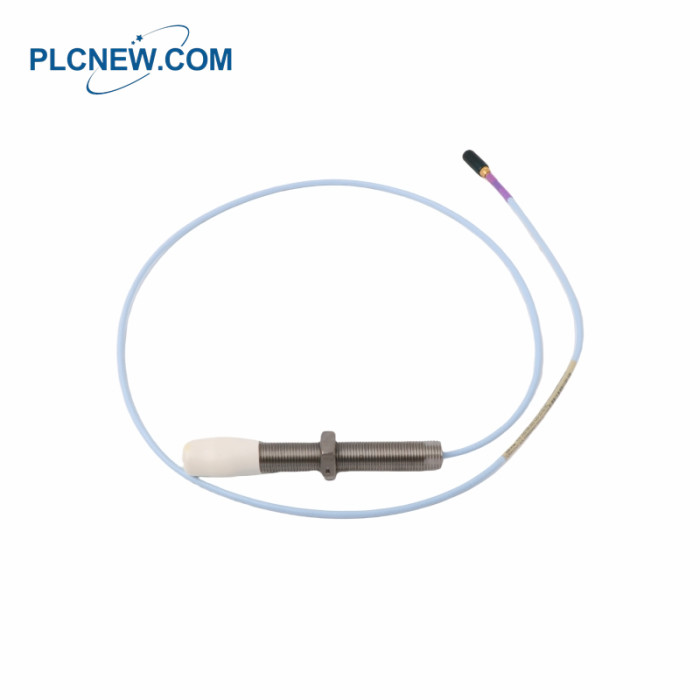

Bently Nevada 330710-000-060-50-02-00 Proximity Probe

Bently Nevada 330710-000-060-50-02-00 Proximity Probe

Bently Nevada 330710-000-060-50-02-00 Specification

Brand:Bently Nevada
Model:330710-000-060-50-02-00
Module Type:Proximity Probe
Standard DSL Range: Less than ±0.10 mm (±4 mils)
Extended DSL Range: Less than ±0.15 mm (±6 mils)
Recommended Torque: Finger tight
Maximum Torque: 0.565 N•m (5 in•lb)
Minimum Bend Radius (with or without SST Armor): 25.4 mm (1.0 in)
Probe Tip Material: Polyphenylene sulfide (PPS)
Probe Case Material: AISI 304 stainless steel (SST)
Proximitor Sensor Material: A380 aluminum
Extension Cable Weight: 45 g/m (0.5 oz/ft)
Armored Extension Cable Weight: 140 g/m (1.5 oz/ft)
Proximitor Sensor Weight: 255 g (9 oz)
Operating and Storage Temperature: -52°C to +177°C (-62°F to +351°F)

Bently Nevada 330710-000-060-50-02-00 Description

The 3300 XL 11 mm Proximity Transducer System is designed for non-contacting

vibration and displacement measurements, offering a 3.94 V/mm (100 mV/mil)

output, making it ideal for monitoring fluid film bearing machines. With a larger

11 mm tip, this system provides a longer linear range compared to the standard

3300 XL 8 mm Transducer System, making it suitable for applications that require

extended measurement capabilities.

The 3300 XL 11 mm Transducer System is primarily used in the following

applications:

Axial (thrust) position measurements
Ramp differential expansion measurements on steam turbines
Rod position or rod drop measurements on reciprocating compressors
Tachometer and zero speed measurements
Phase reference (Keyphasor) signals
This transducer system is designed to replace the older 7200-series 11 mm and

14 mm Transducer Systems. When upgrading from the 7200-series system to the

3300 XL 11 mm system, it is necessary to replace all components with the

corresponding 3300 XL 11 mm components, and update the monitoring system.

If using a 3500 Monitoring System, the configuration software must be upgraded

to a version that lists the 3300 XL 11 mm Transducer System as a compatible

option. Additionally, existing 3300 Monitoring Systems may require a modification

for compatibility.
