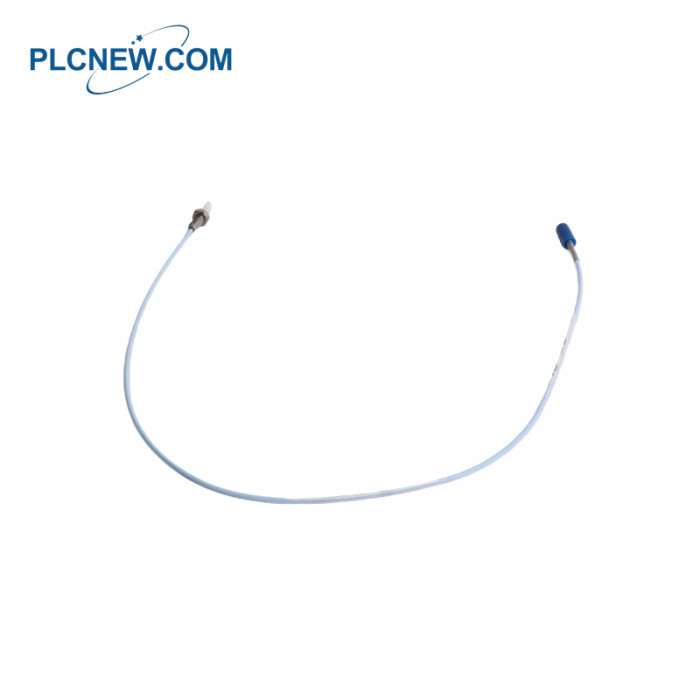

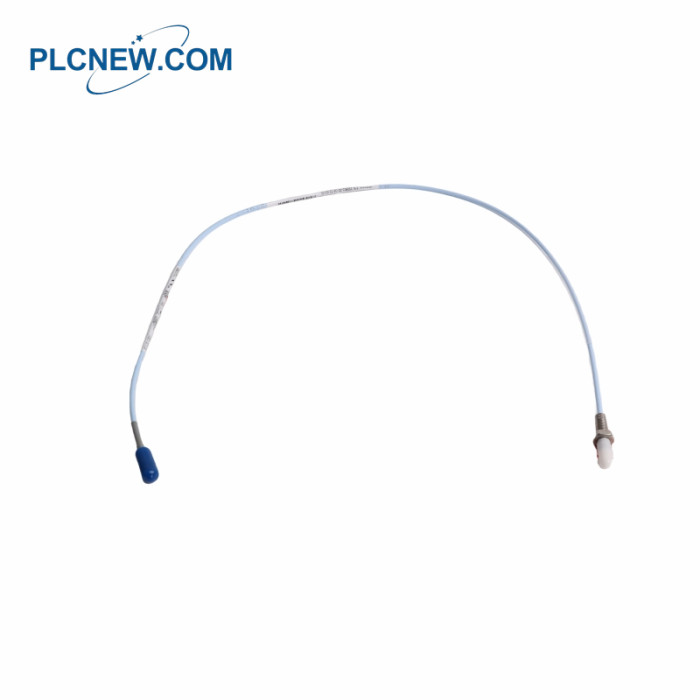

Bently Nevada 330901-22-40-10-01-00 3300 NSv Proximity Probe

Bently Nevada 330901-22-40-10-01-00 3300 NSv Proximity Probe

Bently Nevada 330901-22-40-10-01-00 Specification

Brand:Bently Nevada
Model Number: 330901-22-40-10-01-00
Type:300 NSv Proximity Probe
Probe Tip Material: Polyphenylene sulfide (PPS)
Probe Case Material: AISI 304 stainless steel (SST)
Operating Temperature: -52°C to +177°C (-62°F to +351°F)
Probe Weight: Approximately 14 to 150 g (0.5 to 5.3 oz)
Extension Cable Weight: 45 g/m (0.5 oz/ft)
Armored Extension Cable Weight: 64 g/m (0.7 oz/ft)
Proximitor Sensor Weight: 255 g (9 oz)
Minimum Bend Radius: 25.4 mm (1.0 in)
Storage Temperature: -52°C to +105°C (-62°F to +221°F)
Extension Cable Capacitance: 69.9 pF/m (21.3 pF/ft) typical

Bently Nevada 330901-22-40-10-01-00 Description

The 330901-22-40-10-01-00 3300 XL NSv* proximity sensor system is suitable

for centrifugal air compressors, refrigeration compressors, process gas compressors,

and other machines with strict installation requirements. The 3300 XL NSv proximity

sensor system includes:

One 3300 NSv probe
One 3300 NSv extension cable
One 3300 XL NSv Proximitor* sensor
The 3300 XL NSv sensor system is primarily used in the following areas:

The main application of the 330901-22-40-10-01-00 3300 XL NSv sensor system is

for use under through-hole, side view, or rear view limitations with standard Bently

Nevada* 3300 and 3300 XL 5 mm and 8 mm sensor systems. It is also an ideal choice

for small target applications, such as measuring radial vibration of shafts smaller than

51 mm (2 inches) or axial position measurements of flat targets smaller than 15 mm

(0.6 inches).
It is primarily used in fluid film bearing machines for the following applications where

shafts are smaller or side view space is limited:

Radial vibration and radial position measurement
Axial (thrust) position measurement
Tachometer and zero speed measurements
Phase reference (Keyphasor*) signal
The 3300 XL NSv sensor system is designed to replace the 3300 RAM sensor system

and the 3000 or 7000 series 190 sensor systems.

Upgrading from the 3300 RAM system to the 3300 XL NSv system allows the use

of existing probes, extension cables, and monitoring systems with the 3300 XL

NSv Proximitor sensor. When upgrading from the 3000 or 7000 series sensors to

the 3300 XL NSv system, the probe, extension cable, and monitoring system must

be replaced. The system upgrade requires replacing the probe, extension cable,

and Proximitor sensor with the NSv Proximitor sensor.
