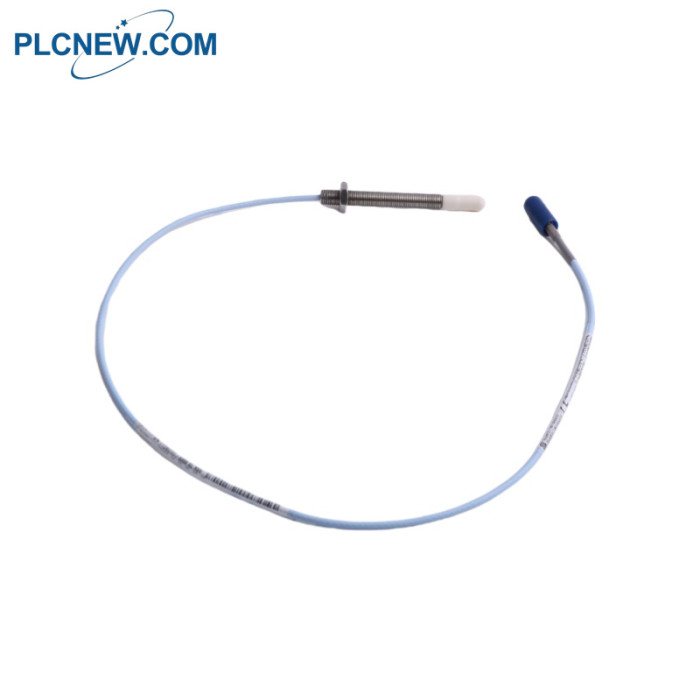

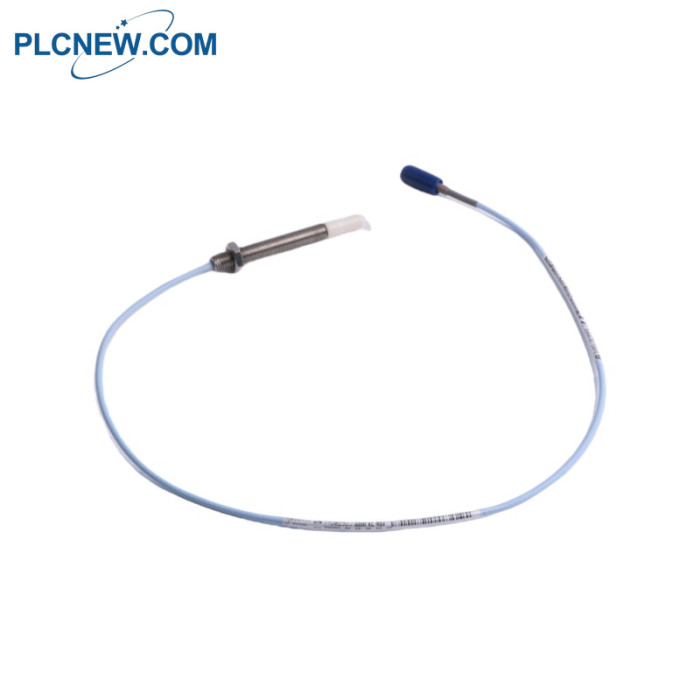

Bently Nevada 330903-00-04-10-02-05 NSv Proximity Probes

Bently Nevada 330903-00-04-10-02-05 NSv Proximity Probes

Bently Nevada 330903-00-04-10-02-05 Specification

A: Unthreaded Length Option
Order in increments of 10 mm.
Length configuration:
Maximum unthreaded length:
230 mm
Minimum unthreaded length:
0 mm
Example:
06 = 60 mm

B: Overall Case Length Option
Order in increments of 10 mm.
Metric thread configurations:
Maximum length: 250 mm
Minimum length: 20 mm
Example: 06 = 60 mm

C: Total Length Option
05:0.5 meter (20 in)
10:1.0 meter (39 in)
50:5.0 meters (16.4 feet)
70:7.0 meters (23.0 feet)

Bently Nevada 330903-00-04-10-02-05 Description

The 3300 XL NSv Proximity Transducer system is intended foruse with centrifugal

air compressors,refrigerationcompressors, process gas compressors, and other

machineswith tight installation requirements. The 3300 XL NSv ProximityTransducer

System consists of:
a 3300 NSv probe
a 3300 NSv extension cable
a 3300 XL NSv Proximitor Sensor
The primary uses for the 3300 XLNSv Transducer System arefor areas where counter

bore, sideview, or rearviewrestrictions limit the use of standard Bently Nevada 3300 and

3300 XL 5 and 8 mm Transducer Systems. lt is also ideal forsmall target applications,

such as measuring radial vibrationon shafts smaller than 5l mm(2 in) or axial position

on flattargets smaller than 15 mm (0.6 in). lt is primarily used in thefollowing applications

on fluid-filmed bearing machineswhere a small shaft or reduced side-view is present:
Radial vibration and radial position measurements
Axial (thrust) position measurements
Tachometer and zero speed measurements
Phase reference (Keyphasor signals)


The 3300 XL NSv Transducer System design allows it toreplace both the 3300 RAM

Transducer Systems and the3000-series or 7000-series 190 Transducer System.Upgradesfrom

the 3300 RAM system to the 3300 XL NSv system mayuse the existing probe, extension cable,

and monitoring system with 3300 XL NSv ProximitorSensor.Upgrades from the 3000-series or

7000-series Transducer System must replacethe probe, extension cable, and ProximitorSensor

with NSv components.


The 3300 XL NSv Transducer system has anAverage scale Factor of 7.87 v/mm(200mV/mil),

which is the most common output foreddy current transducers.its enhanced side-view and small

target characteristics give it ashorter linear range than the Bently Nevada3300 XL-series 5 and

8 mm Transducer System.The 1.5 mm(60 mils) of linear range exceedsthe linear range of the

3000-series 190Transducer System.
