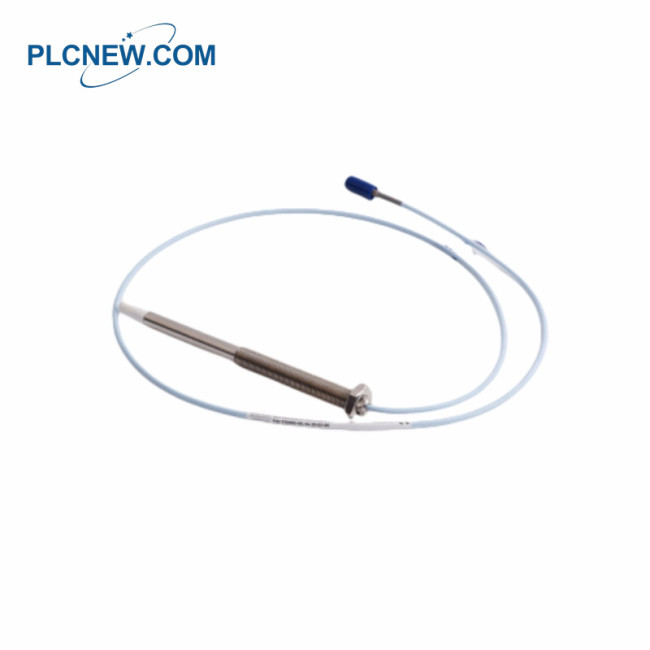

Bently Nevada 330905-00-13-05-02-00 Vibration Transducer

Bently Nevada 330905-00-13-05-02-00 Vibration Transducer

Description:
The transducer is engineered for high precision and durability, capable of operating in various industrial environments.  It measures the vibrations of rotating equipment by detecting changes in the position of a target, providing essential data for condition monitoring and maintenance scheduling.

Key Parameters:
Probe Length: 13 inches (330 mm)
The length of the probe allows it to reach and measure vibration at specific points within machinery effectively.
Probe Tip Diameter: 0.5 inches (12.7 mm)
The diameter of the probe tip affects the measurement's accuracy and resolution.
System Capacitance: 20 pF/inch (78.7 pF/m)
This indicates the capacitance of the system per inch, which impacts the sensor's accuracy.
Linear Range: 0.5 inches (12.7 mm)
The linear measurement range in which the transducer can operate without distortion.
Sensitivity: 2.0 V/mil (78.7 V/mm)
The output voltage change per unit of displacement, indicating how sensitive the transducer is to vibrations.
Frequency Response: DC to 10 kHz
The frequency range over which the transducer can accurately measure vibrations.

Temperature Range:
Operating: -40°C to +120°C (-40°F to +248°F)
Storage: -55°C to +120°C (-67°F to +248°F)
The operational temperature range ensures reliable performance in diverse environments.
Power Supply: -24 V DC at 12 mA (typical)
The power required for the transducer to function effectively.
Output Voltage: -1 to -24 V DC (depending on shaft position)
The voltage output range provided by the transducer, which varies based on the vibration level being measured.
