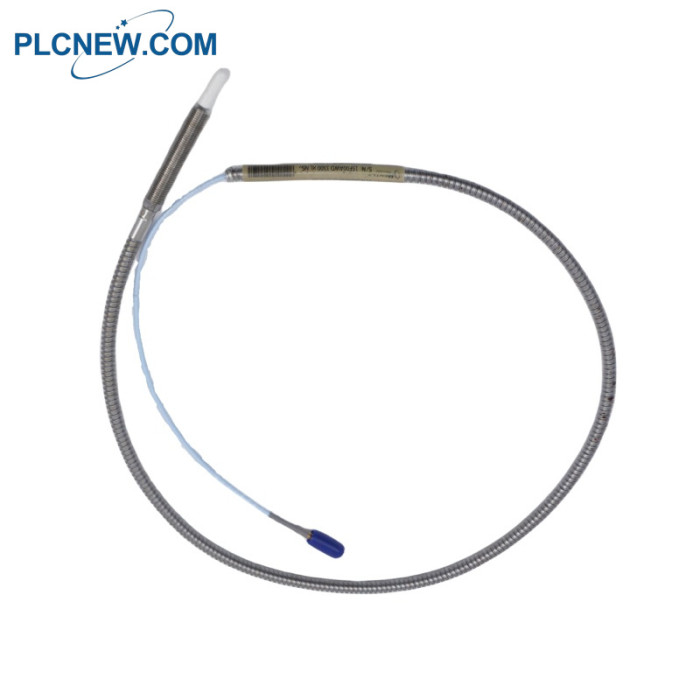

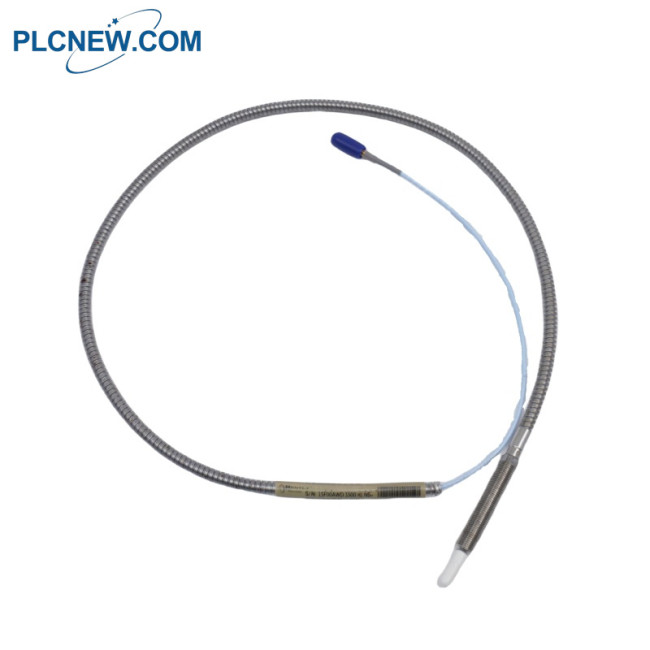

Bently Nevada 330910-00-03-10-02-00 3300 NSv Probe

Bently Nevada 330910-00-03-10-02-00 3300 NSv Probe

Bently Nevada 330910-00-03-10-02-00 Specification

Part Number: 330910-00-03-10-02-00
Model: 3300 NSv Probes
Manufacturer: Bently Nevada
Condition: New & Original in Factory Packing
Factory Warranty: 12 Months

Bently Nevada 330910-00-03-10-02-00 Description

The 3300 XL NSv Proximity Transducer System is designed for use in applications

with tight installation requirements, such as centrifugal air compressors, refrigeration

compressors, process gas compressors, and other similar machinery. This system is ideal

for situations where space constraints, such as counterbore, side-view, or rear-view restrictions,

make it difficult to use standard 5 mm or 8 mm transducer systems. It is also well-suited for

small target applications, including radial vibration measurements on shafts smaller than 51 mm

(2 in) or axial position measurements on flat targets smaller than 15 mm (0.6 in).

The 3300 XL NSv Proximity Transducer System includes three main components:
A 3300 NSv Probe
A 3300 NSv Extension Cable
A 3300 XL NSv Proximitor Sensor
This system is commonly used for the following applications on fluid-filmed bearing machines

with small shafts or reduced side-view clearance:
Radial vibration and radial position measurements
Axial (thrust) position measurements
Tachometer and zero-speed measurements
Phase reference (Keyphasor) signals

The 3300 XL NSv Transducer System is designed to replace older systems, such as the 3300 RAM

Transducer Systems and the 3000-series or 7000-series 190 Transducer Systems. When upgrading

from the 3300 RAM system, the existing probe, extension cable, and monitoring system can be

retained, with only the Proximitor Sensor needing to be replaced with the 3300 XL NSv Proximitor

Sensor. However, upgrades from the 3000-series or 7000-series Transducer Systems require replacing

the probe, extension cable, and Proximitor Sensor with NSv components.

The system features an Average Scale Factor of 7.87 V/mm (200 mV/mil), which is the standard output

for eddy current transducers. While its enhanced side-view and small target capabilities result in a shorter

linear range compared to standard 5 mm and 8 mm transducer systems, the 3300 XL NSv offers a linear

range of 1.5 mm (60 mils), exceeding the linear range of the 3000-series 190 Transducer System.

This makes the 3300 XL NSv Proximity Transducer System a versatile and reliable solution for challenging

installation environments and small target applications.
