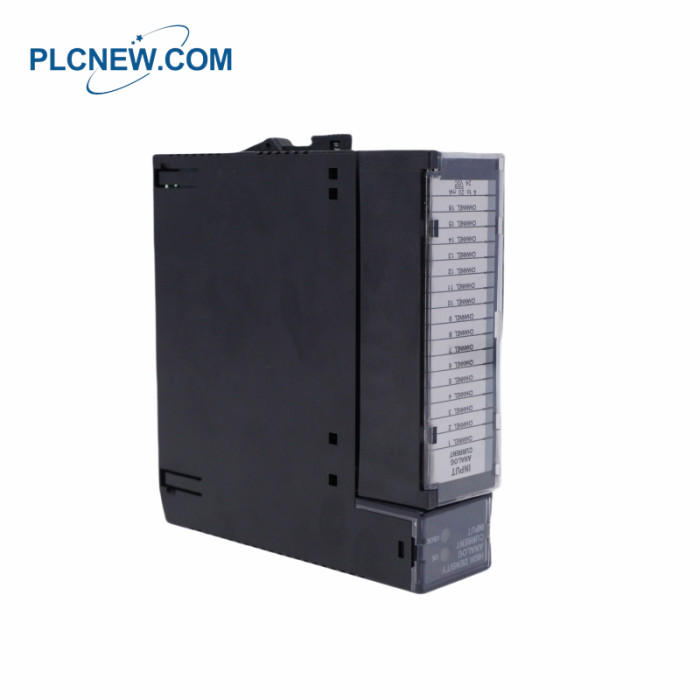

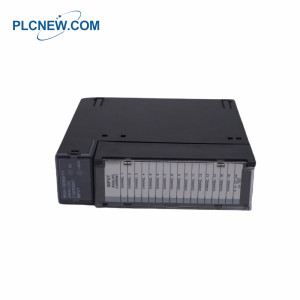

GE IC693ALG223C Analog Input Module

GE IC693ALG223C Analog Input Module

GE IC693ALG223C Specification

Brand:GE Fanuc
Series:Series 90-30
Part Number:IC693ALG223
Range:4-20 mA, 0-20 mA
Accuracy 0.25% at 25 degree Celsius
Product Description:Analog Current Input
External Power:24 VDC
Product Description:Analog Current Input
No of Channels:16

GE IC693ALG223C Description

   The IC693ALG223 is a single slot module that is installed to any slot of a Series

90-30 5-slot or 10-slot baseplate.  Depending on the controller installed, the

number of allowed instances of the IC693ALG223 varies.  For Model 311,

Model 313, and Model 323 system, up to Four (4) module instances is compatible.

For Model 331 system, Eight (8) modules, Twelve (12) with Model 340 and 341

system and 51 in Model 351 and 352 systems.

   The IC693ALG223 has 12-bit resolution with update rate of 13 msec for all 16

channels, absolute accuracy of ± 0.25% of full scale @ 25 Deg. Celsius

(77 Deg. Fahrenheit): ± 0.5% of full scale over specified operating temperature

range and linearity of < 1 LSB from 4 to 20 mA for 4 to 20 mA range and < 1 LSB

from 100 µA to 20 mA for 0 to 20 mA and 4 to 20 mA Enhanced ranges.  This

module is designed with 1500 volts isolation capability between field side and logic

side.
