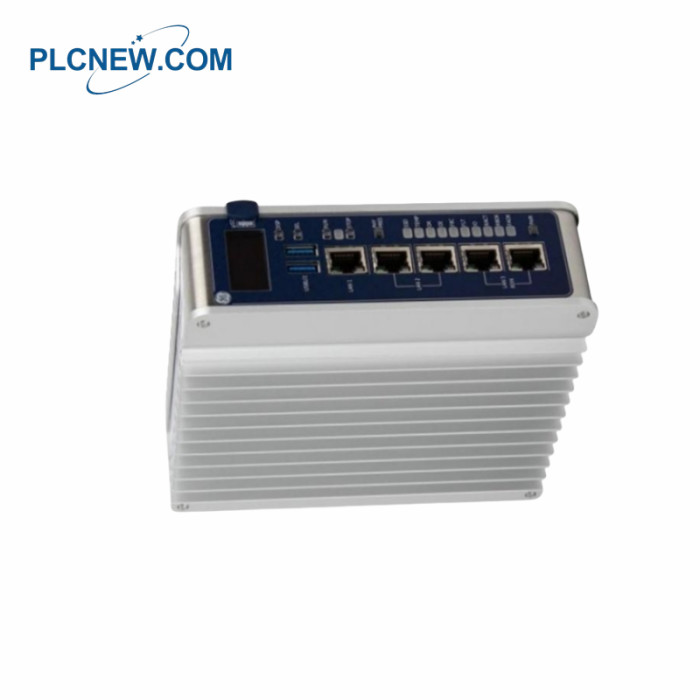

GE IC695CPE400-AAAA CPU module

GE IC695CPE400-AAAA CPU module

GE IC695CPE400-AAAA Specification

Brand:GE
Model:  IC695CPE400-AAAA
Module Type:CPU module
Power Supply:24 VDC
Product Description: Rackless CPU
Series: PACSystems RX3i
Processor: 1.2 GHz AMD G Series Quad-Core
RAM: 64 MB
Processor Type: 1.2 GHz AMD G Series quad-core microprocessor
Operating System: VxWorks
Flash Memory: 64 MB
Program Storage: 64 Mbytes of User Memory
Processor Speed: 1.2 GHz AMD G quad-core
I/O Memory: 32 Kbits Discrete I/O; 32 KWords Analog I/O
Type of Memory Storage: SRAM, Flash
Operating System: VxWorks
Number of Program Blocks: 768 Program Blocks
Input Power Requirement: 20 Watts
Maximum Program Block Size: 128 KB
Display: OLED
Local Display: OLED display
User Memory: 64 MB

GE IC695CPE400-AAAA Description

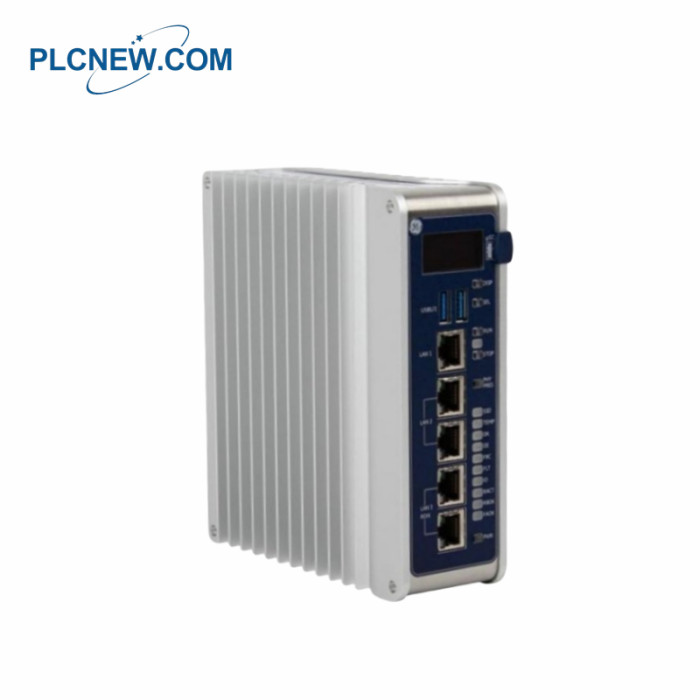

The IC695CPE400-AAAA is a Central Processing Unit (CPU) module from the

PACSystem RX3i series, formerly manufactured by GE Intelligent Platforms,

now under Emerson. This module is designed for DIN Rail mounting and comes

with a variety of communication, peripheral and connectivity ports such as Five

(5) LAN ports, Two (2) USB interfaces located at the front panel; One (1) RJ45Serial

COM port, One (1) Video display port; One (1) IICS Cloud Port (EFA) installed on

the rear panel of the device. It has a 1.2 GHz AMD G Series quad-core microprocessor,

64 Mbytes memory and programmable using a variety of languages such as Ladder

Diagram, Structured Text, Function Block Diagram, or C. The IC695CPE400-AAAA

I/O memory can support up to 32 Kbits of Discrete input (%I) and Discrete Output

(%Q) and 32KWords of analog input (%AI) and analog output (%AQ). Bulk memory

(%W) is also supported by this module for data exchanges. Up to 768 Program blocks

can be downloaded to this IC695CPE400-AAAA module with maximum individual

block size of 128 KB. LAN 1 of this module is designed for liner communication

while LAN2 and LAN3 are embedded switch ports with LAN3 used to provide

high-speed communication and synchronization port between redundant processors.

All ports support 10/100/1000 Mbps communication speed supporting full and

half-duplex mode, straight and crossover cable connectors. In addition, LAN 1

and LAN 2 supports communication with PME programming station using SRTP

protocol. Furthermore, LAN2 supports media redundancy protocol. This rackless

CPU module is designed to operate at nominal external supply voltage of 24 VDC.

Contact King for the best price and delivery time！
