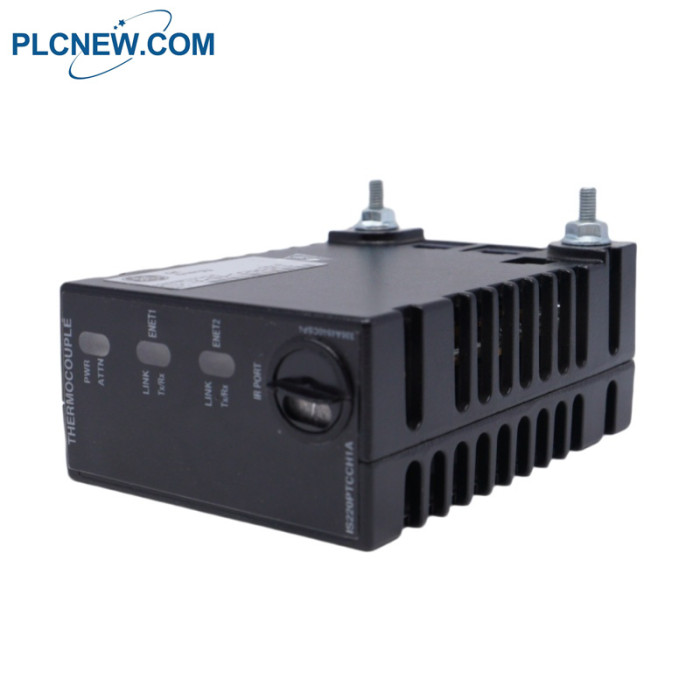

General Electric IS220PTCCH1A Thermocouple Input Module

General Electric IS220PTCCH1A Thermocouple Input Module

General Electric IS220PTCCH1A Specification

Part Number: IS220PTCCH1A
Manufacturer: General Electric
Series: Mark VIe
Function: Thermocouple Input Module
Number of Channels: 12
Thermocouple Types: E, J, K, S
Span: -8 mV to +45 mV
A/D Converter: 16-bit
Common Mode Voltage: +5 Volts
Normal Mode Rejection: 250mV
Microprocessor: AMD-K6 300 MHz
Size: 8.26 cm wide x 4.19 cm
Technology: Surface Mount
Repair: 3-7 Day
Availability: In Stock
Country of Origin: United States
Manual: GEH-6721D

General Electric IS220PTCCH1A description

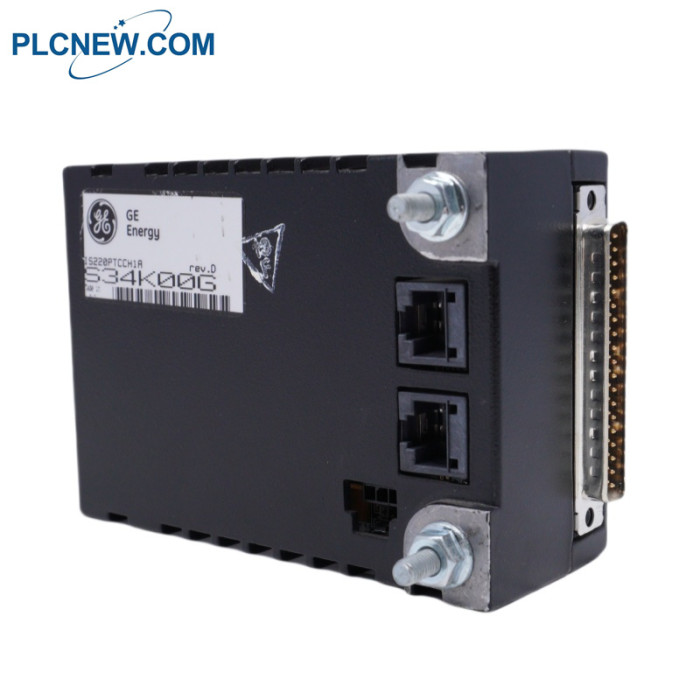

IS220PTCCH1A is a Thermocouple Input Module manufactured and designed by General Electric as part of the Mark VIe Series used in GE Distributed Control Systems. The PTCC provides the electrical interface between one or two I/O Ethernet networks and a thermocouple input terminal board. The pack contains a processor board common to all Mark VIe distributed I/O packs and an acquisition board specific to the thermocouple input function. The pack is capable of handling up to 12 thermocouple inputs. Two packs can handle 24 inputs on TBTCH1C. In the TMR configuration with the TBTCH1B terminal board, three packs are used with three cold junctions, but only 12 thermocouples are available. Input to the pack is through dual RJ45 Ethernet connectors and a three-pin power input. Output is through a DC-37 pin connector that mates directly with the associated terminal board connector. Visual diagnostics are provided through indicator LEDs, and local diagnostic serial communications are possible through an infrared port.
