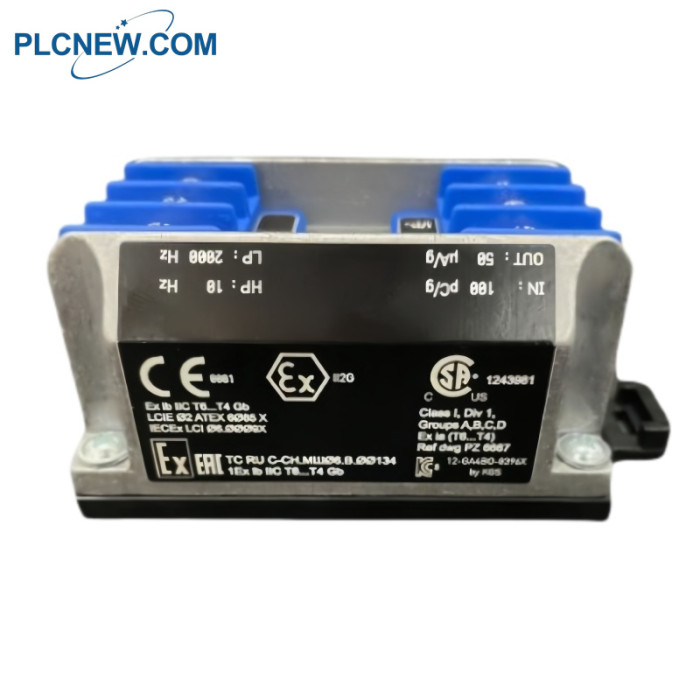

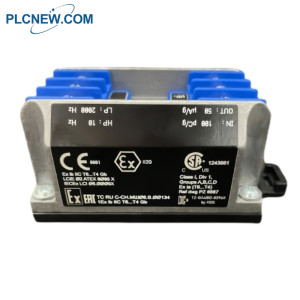

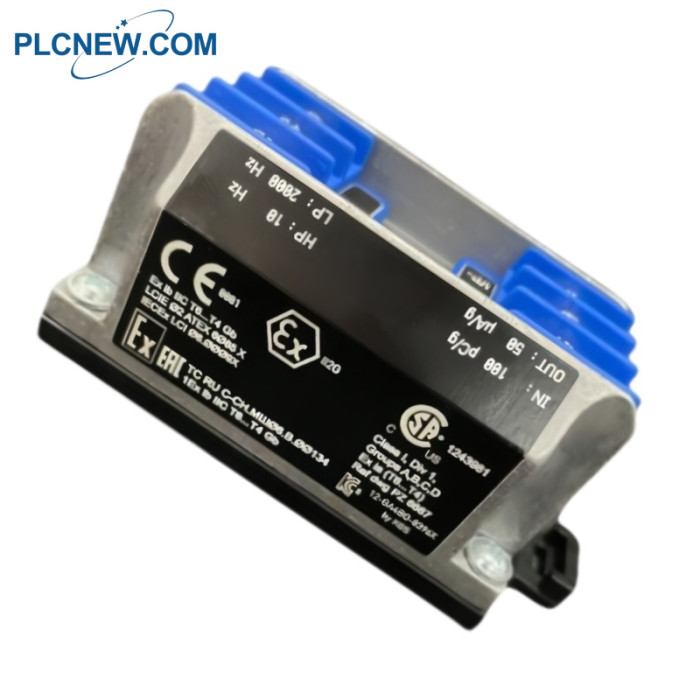

IPC704 244-704-000-042 VIBRO METER Signal Conditioner

IPC704 244-704-000-042 VIBRO METER Signal Conditioner

IPC704 244-704-000-042 Specification

Temperature
Operation : −30 to +85 °C
Storage : −40 to +85 °C
Humidity : Max. 95 % non-condensing
Protection rating: IP40
(according to IEC 60529)
Vibration: 2 g peak between 10 and 500 Hz
(according to IEC 60068-2-26)
Shock acceleration: 15 g peak (half sine, 11 ms duration)
(according to IEC 60068-2-27)

IPC704 244-704-000-042 Description

The IPC704 signal conditioner converts the chargebased signal from a

piezoelectric-based transducer into a current or a voltage signal. This current

or voltage signal is transmitted to the processing electronics via a standard

2-wire or 3-wire transmission cable.

The current modulation technique allows transmission over a distance of up to 1 km.

A GSI galvanic separation unit is required for this configuration.

The electronic circuitry of the IPC704 signal conditioner is incorporated into a moulded

aluminium enclosure. The signal conditioner has configurable high-pass and low-pass

filters and an optional integrator to give a velocity output. Furthermore, RFI filters protect

the input and output against radiofrequency interference and other electromagnetic influences

FEATURES:
-From the Vibro-Meter@product line
-For CAxxx piezoelectric accelerometersand CPxxx dynamic pressure sensors
-Configurable high-pass and low-pass filters
-Frequency range: 0.5 Hz to 20 kHz
-Optional integrator to produce a velocity output
-Optional 2-wire current or 3-wire voltagetransmission
-Certified for use in potentially explosiveatmospheres
-A range of installation options are available
