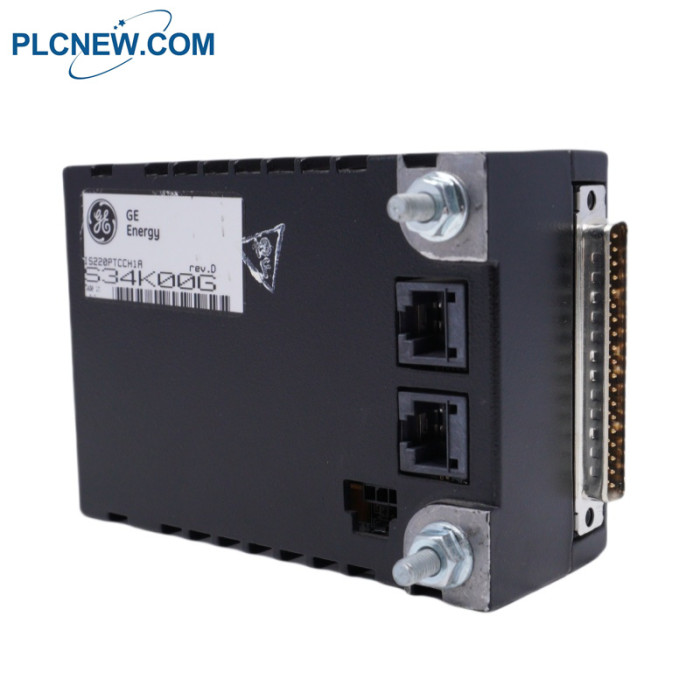

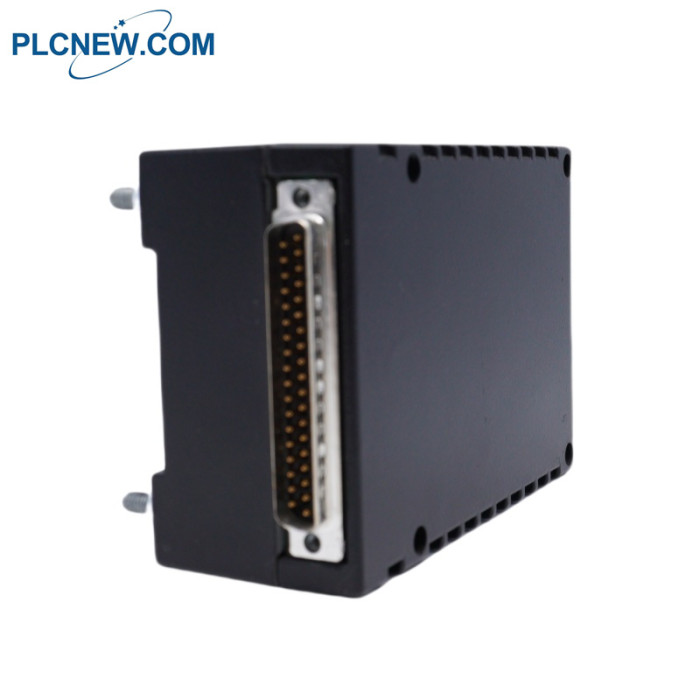

IS220PTCCH1A GE Thermocouple Input Module
IS220PTCCH1A GE Specification
Part Number: IS220PTCCH1A
Manufacturer: General Electric
Series: Mark VIe
Function: Thermocouple Input Module
Number of Channels: 12
Thermocouple Types: E, J, K, S
Span: -8 mV to +45 mV
A/D Converter: 16-bit
Common Mode Voltage: +5 Volts
Normal Mode Rejection: 250mV
IS220PTCCH1A GE Description
IS220PTCCH1A is a Thermocouple Input Module manufactured and designed by
General Electric as part of the Mark VIe Series used in GE Distributed Control Systems.
The PTCC provides the electrical interface between one or two I/O Ethernet networks
and a thermocouple input terminal board. The pack contains a processor board common
to all Mark VIe distributed I/O packs and an acquisition board specific to the thermocouple
input function. The pack is capable of handling up to 12 thermocouple inputs. Two packs
can handle 24 inputs on TBTCH1C. In the TMR configuration with the TBTCH1B terminal
board, three packs are used with three cold junctions, but only 12 thermocouples are available.
Input to the pack is through dual RJ45 Ethernet connectors and a three-pin power input. Output
is through a DC-37 pin connector that mates directly with the associated terminal board connector.
Visual diagnostics are provided through indicator LEDs, and local diagnostic serial communications
are possible through an infrared port.
