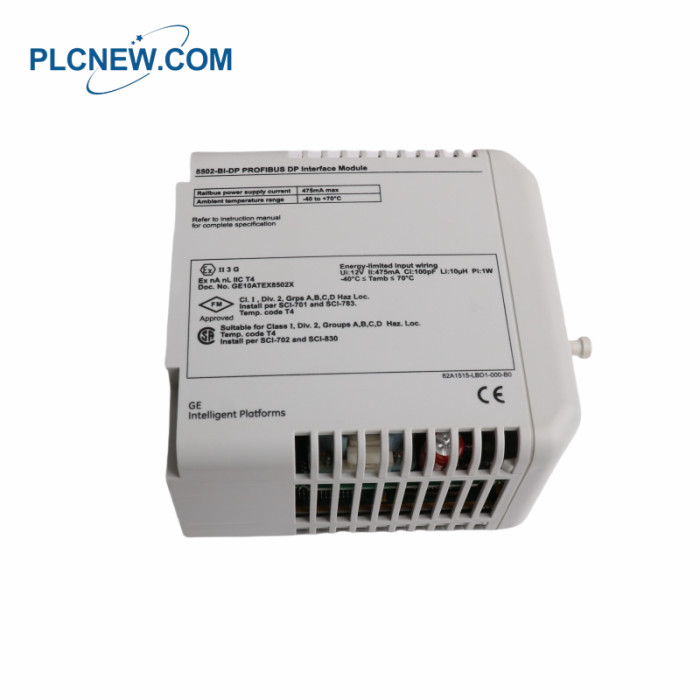

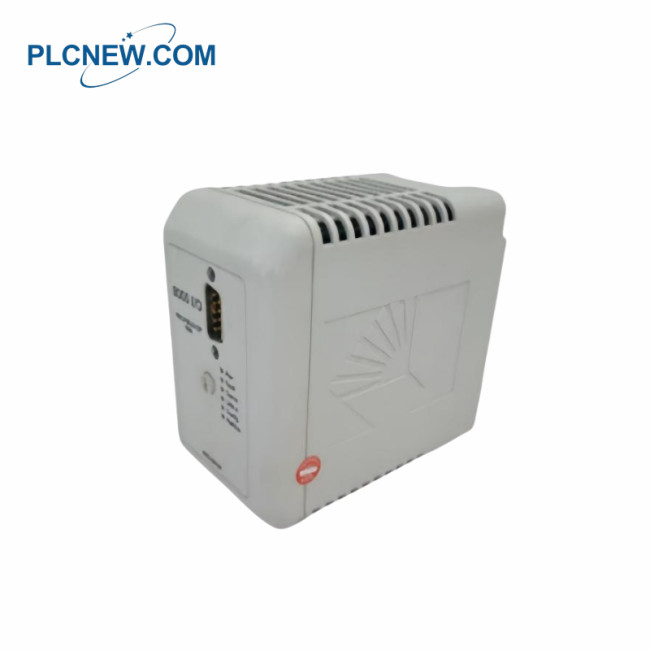

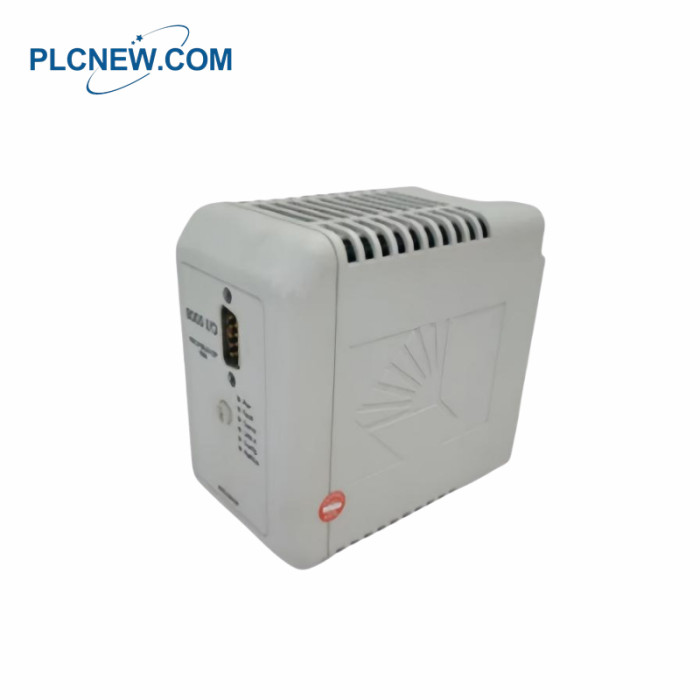

MTL 8502-BI-DP-01 Bus Interface Module

MTL 8502-BI-DP-01 Bus Interface Module

MTL 8502-BI-DP-01 Specification

Manufacturer:MTL
Model Number:8502-BI-DP-01
Product type: Bus Interface Module
Bus protocol: Profibus-DP
Number of I/O modules supported: Up to 24
Data transfer rate: Up to 12 Mbps
HART support: Yes
Power supply: 24V DC from the MTL 8000 carrier
Dimensions: 98mm x 104mm x 40mm (3.86" x 4.09" x 1.57")
Weight: 0.25kg (0.55 lbs)
Operating temperature range: -20°C to +70°C (-4°F to +158°F)
Storage temperature range: -40°C to +85°C (-40°F to +185°F)

MTL 8502-BI-DP-01 Description

The module is designed to support up to 24 MTL 8000 I/O modules, offering

exceptional scalability and flexibility for diverse industrial applications. It

serves as a critical interface, seamlessly connecting the MTL 8000 system to a

Profibus-DP host network, enabling efficient data communication and centralized

control. Additionally, the module features comprehensive HART protocol support,

allowing access to both process variables and status information, which enhances

system monitoring and diagnostic capabilities.

A standout feature of this module is its hot-swappable design, which enables

components to be replaced or upgraded without interrupting system operations,

thereby minimizing downtime and ensuring continuous productivity. For real-time

system insights, the module is equipped with LED indicators that provide clear

and immediate diagnostics, helping operators quickly identify and resolve issues.

The inclusion of isolated communication ports enhances the module’s reliability

by protecting against electrical interference and ensuring robust data transmission

even in electrically noisy environments. Engineered with rugged construction, the

module is built to withstand extreme industrial conditions, including

temperature fluctuations, vibrations, and other challenging factors, making it

a reliable choice for critical operations. Its combination of advanced features and

durable design ensures optimal performance in a wide range of applications, from

process to complex control systems.
