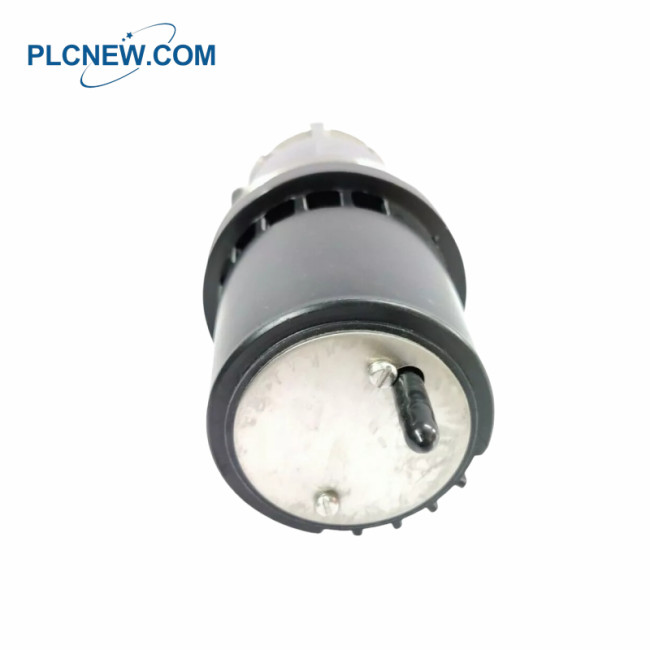

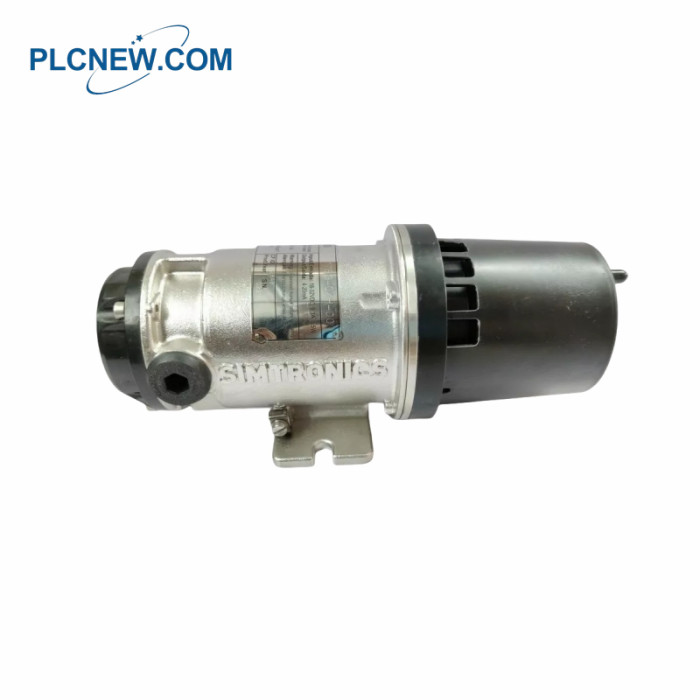

SIMTRONICS GD10-P00-17DG-0XH-00 Safety Systems

SIMTRONICS GD10-P00-17DG-0XH-00 Safety Systems

SIMTRONICS GD10-P00-17DG-0XH-00 Specification

Brand:SIMTRONICS
Model:GD10-P00-17DG-0XH-00
Power Supply: 24 VDC, range 18-32 VDC
Power Consumption: Approx. 3.5 W
Connection: 3 wires (0.5mm² - 1.5mm²)
Cable Entry: M20 Ex e cable gland
Optics Condition: Early Dirty Optics, Dirty Optics
Detector Status: Detector failure
Signal Attenuation: 55% signal attenuation, 70% signal attenuation
Fault Condition: Main function fault or blocked optics
Standard: Current source 4-20 mA, max. load impedance 500 Ohm
Option: Current sink 4-20 mA
Interface: HART® interface

SIMTRONICS GD10-P00-17DG-0XH-00 Description

The SIMTRONICS GD10-P00-17DG-0XH-00 is a high-performance infrared

(IR) gas detector designed for use in industrial safety systems, offering fast,

accurate, and reliable gas detection in hazardous environments. Part of the

GD10 series, this detector is built with solid-state infrared technology, ensuring

long-term stability, minimal maintenance, and high resistance to sensor poisoning.

Equipped with dual-wavelength IR detection, the GD10-P00-17DG-0XH-00

provides superior selectivity and immunity to environmental variations, making

it ideal for offshore platforms, chemical plants, refineries, and other industrial sites.

It offers a 4-20 mA output signal with HART® communication, enabling

seamless integration with safety and control systems.

The detector operates on a 24 VDC power supply and features low power

consumption (approx. 3.5 W). With an IP66/IP67-rated enclosure, it is designed

to withstand harsh weather conditions, extreme temperatures, and high humidity.

The M20 Ex e cable gland ensures secure and explosion-proof cable entry, making

it compliant with ATEX and IECEx safety standards.

With advanced diagnostics, self-monitoring capabilities, and minimal drift over time,

the GD10-P00-17DG-0XH-00 provides enhanced safety and operational efficiency,

reducing false alarms and maintenance costs.
