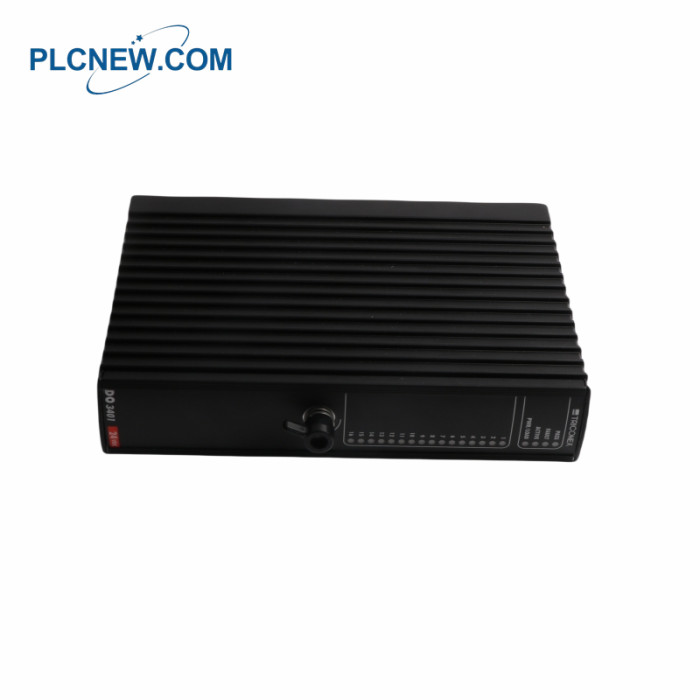

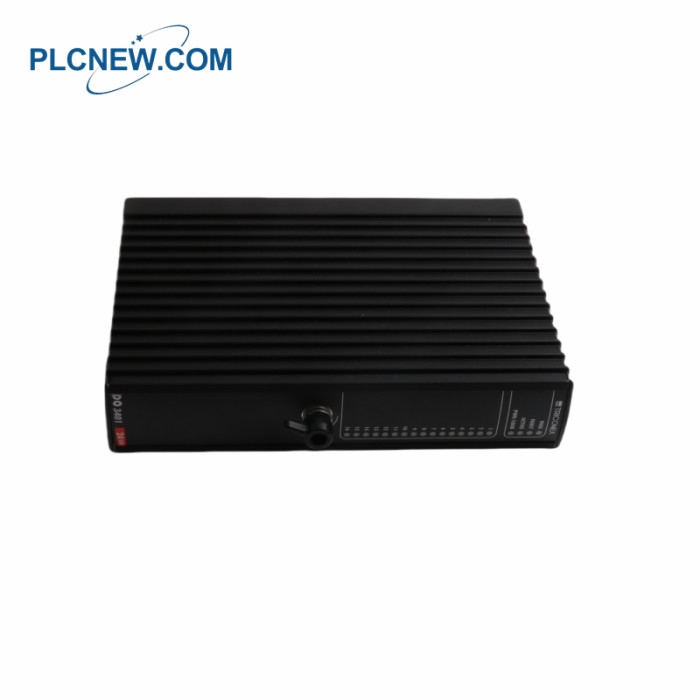

TRICONEX DO3401 Digital Output Module
TRICONEX DO3401 Specification
|
Type |
Digital Output Module |
|
Model Number |
DO3401 |
|
Manufacturer |
Triconex |
|
Nominal Output Voltage |
24 VDC |
|
Weight |
1.4 kg |
|
Dimensions |
4.5 x 18.8 x 20.8 cm |
|
Operational Voltage Range |
15 to 30 VDC |
|
Absolute Maximum Output Voltage |
33 VDC |
|
Absolute Maximum Reverse Input Voltage |
-0.6 VDC |
|
Switching Output Current (Self-Limiting) |
< 4.8 A (typical 3.0 A) |
|
Degraded Mode Output Current (Self-Limiting) |
> 0.7 A (typical 1.5 A) |
|
Maximum Input Toggle Rate |
< 20/sec |
|
FVD Off State Glitch Duration |
< 2 ms |
|
Magnitude (Test Voltage) |
≈ 36% |
|
Output Impedance |
0–5 VDC, ≈ 100 kΩ |
|
ADC Scan Time |
< 1 ms for all 32 points |
|
Functional Earth to Protective Earth Isolation |
500 VDC, minimum |
|
Functional Earth to Functional Earth Isolation |
800 VDC, minimum |
TRICONEX DO3401 Description
Engineered for industrial strength and reliability, the Triconex D03401 Digital
Output Module is designed to deliver consistent performance under demanding
conditions. This module is an essential component for enhancing the precision and
efficiency of your industrial systems.
Featuring a wide operational voltage range of 15 to 30 VDC, it ensures compatibility
with various power sources, making it versatile for different applications. Its robust
design withstands harsh environments, ensuring reliable operation even in
challenging industrial settings.
With its high output current capability, the DO3401 module can drive a wide
range of actuators and devices, providing the necessary power to control machinery
and equipment with ease. The self-limiting feature prevents overcurrent and ensures
safe operation, reducing the risk of system damage or failure.
Equipped with advanced diagnostic capabilities, this D03401 module includes
Force-to-Value diagnostic (FVD) and loss of view detection, enabling quick identification
of faults. It maintains diagnostic fault coverage at a rate of less than 20/sec,
ensuring continuous monitoring and maintenance of system health.
The Triconex D03401 Digital Output Module comes with a comprehensive set
of specifications that cater to a broad spectrum of industrial needs. From its isolation
features ensuring electrical safety to its high-quality materials, every aspect of this
module is crafted to meet the highest standards of industrial control systems.
