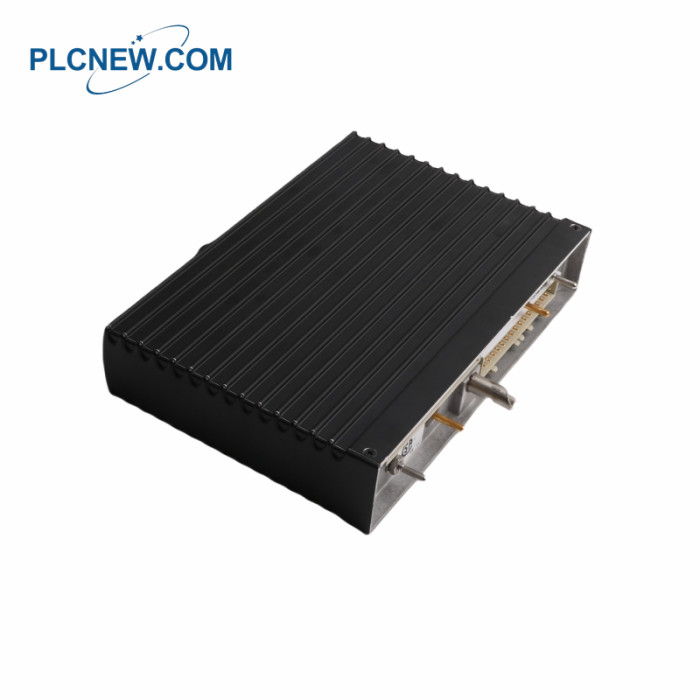

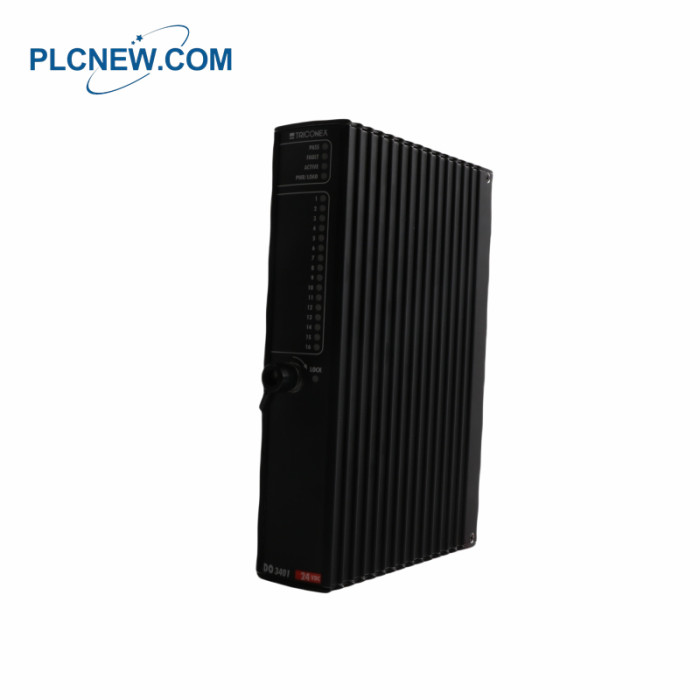

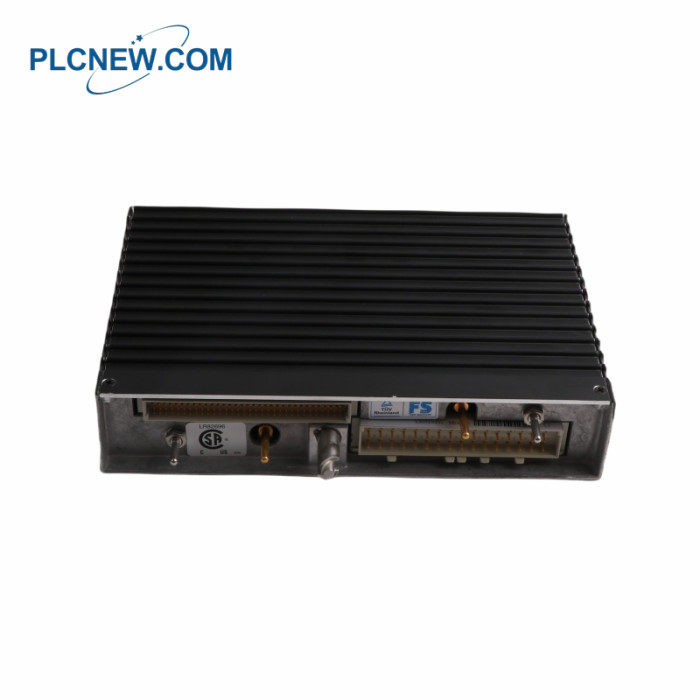

TRICONEX DO3401 Output Module

TRICONEX DO3401 Output Module

TRICONEX DO3401 Specification

Operating Voltage:24 VDC
Specified Operational Voltage Range:15 to 30 VDC
Absolute Maximum Output Voltage:33 VDC
Absolute Maximum Reverse Input Voltage:- 0.6 VDC
Output Current:<4.8 A, self-limiting | 3.0 A, typical
Degraded Mode Output Current:> 0.7 A, self-limiting | 1.5 A, typical
Field Alarms:[“Loss of field power”,”Output point shorted”]
On/Off Loop-back Thresholds:0–5 VDC = Off region | 6–14 VDC

= transition region | 15–30 VDC = On region
Leakage to Load:> 0.7 A, self-limiting | 1.5 A, typical
Dimensions:4.5x18.8x20.8cm
Weight:1.4kg

TRICONEX DO3401 Description

    The TRICONEX DO3401 Output Module is engineered for seamless integration

into complex industrial control systems, offering unparalleled reliability and efficiency.

    Crafted from high-quality materials, this module ensures long-lasting performance

and robustness under harsh industrial conditions.

    With its wide operational voltage range, the DO3401 is versatile, compatible with

various power sources found in different industrial environments.

    This module supports both on/off control and loop-back threshold detection,

providing precise signal processing and enhanced system responsiveness.

    Its ability to handle up to 16 commoned points makes it suitable for a variety

of applications, from monitoring critical processes to machinery operations.

    Equipped with advanced protection mechanisms, the TRICONEX DO3401

Output Module safeguards against overvoltage and reverse polarity, ensuring

uninterrupted operation and system integrity.
