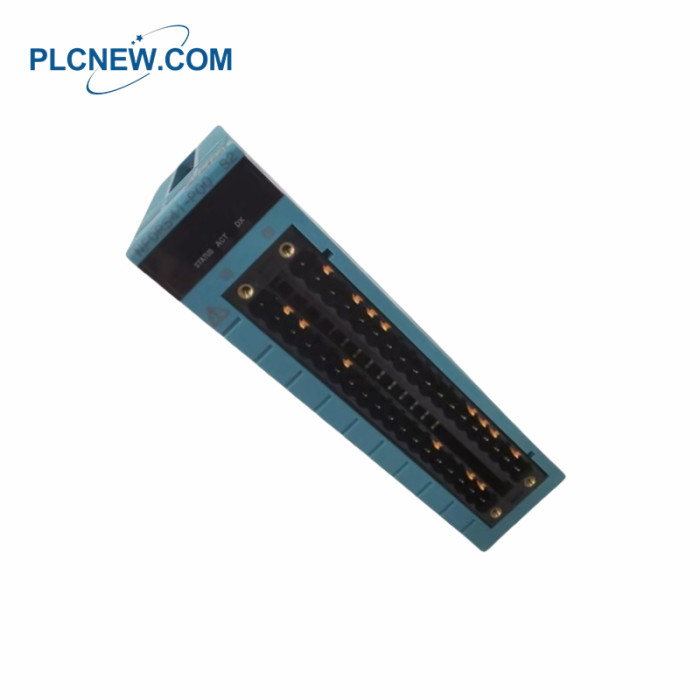

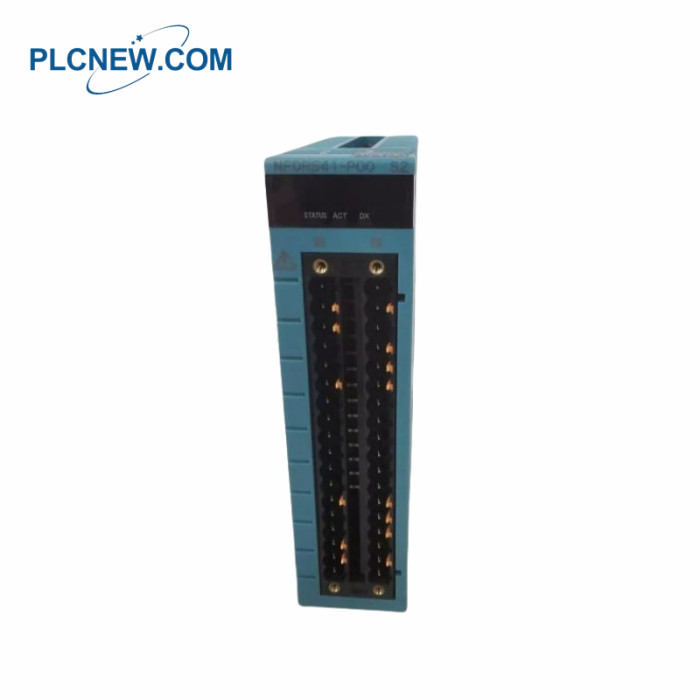

Yokogawa NFDR541-P50 RELAY OUTPUT MODULE

Yokogawa NFDR541-P50 RELAY OUTPUT MODULE

Yokogawa NFDR541-P50 Specification

Brand:Yokogawa
Model:NFDR541-P50
Type:RELAY OUTPUT MODULE
Number of Output Channels: 16
Output Type: Relay contacts
Output Response Time: 12 ms or less (for status output)
Maximum Current Consumption: 780 mA (5 V DC)
Operating Temperature: -10 to +55 °C
Dimensions:3.2 cm x 12.7 cm x 12.7 cm
Weight: 0.3 kg
External Connection: Pressure clamp terminal


Yokogawa NFDR541-P50 Description

The Yokogawa NFDR541-P50 Relay Output Module is a versatile and reliable

component designed for use in industrial control systems, offering robust

functionality and flexibility. This module features 16 independent relay output

channels, making it ideal for controlling external devices such as motors, valves,

alarms, and other actuators in processes. It supports a wide range of operating

voltages, including AC (100-240 V) and DC (24-110 V), and provides a high

maximum switching current of 5 A per channel (DC) or 3 A per channel (AC),

ensuring compatibility with various industrial equipment.

The module is built with strong electrical isolation capabilities, rated at 2 kV, to

enhance safety and reduce the risk of interference between channels and the power

supply. Its compact and modular design allows for seamless integration into control

panels, utilizing a DIN rail mounting system for easy installation. Screw

terminal connections provide secure and reliable wiring options, simplifying the

setup and maintenance processes.

Engineered for durability, the NFDR541-P50 operates efficiently in harsh

industrial environments, with an operating temperature range of -10 to +55 °C.

Its lightweight design, weighing approximately 0.3 kg, ensures minimal impact on

system space and weight constraints. Whether used in discrete manufacturing,

process control, or building, this relay output module delivers high performance,

reliability, and ease of use for a wide range of applications.
