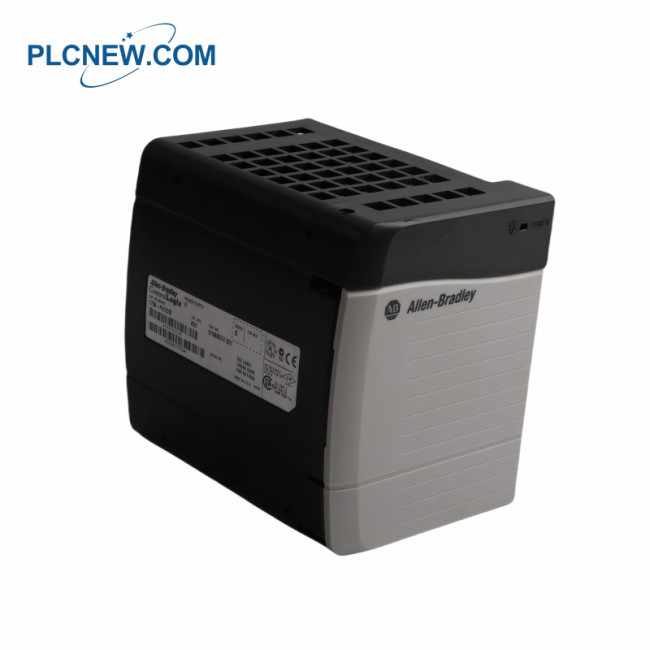

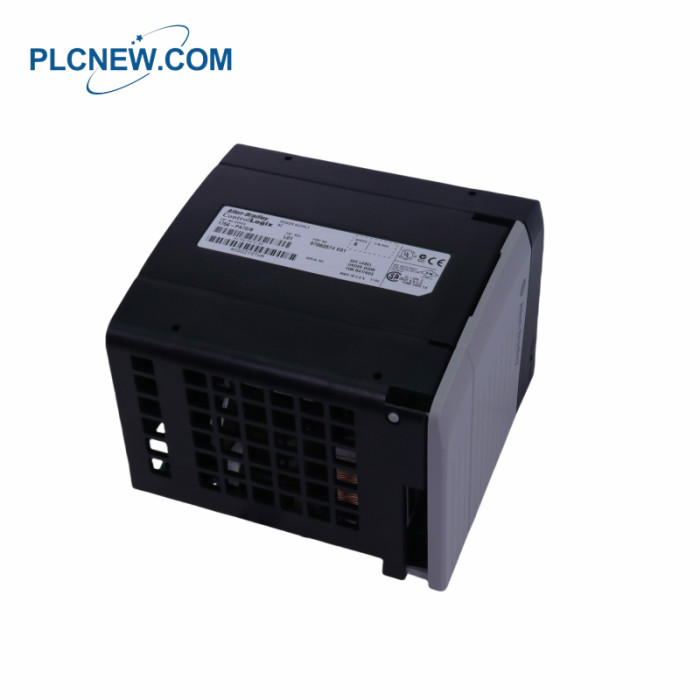

1756-PA72 Power Supply

1756-PA72 Power Supply

1756-PA72 Specification

Part Number/Catalog No.: 1756-PA72
Brand: PLC module
Nominal Input Voltage: 120/240 VAC
Input Voltage Range: 85-265 VAC
Isolation Voltage: 250 Volts Continuous
Max Inrush Current: 30 Amperes
Current Capacity: 4A at 3.3VDC; 10A at 5.1VDC; 2.8A at 24VDC
Input Power: 100 Watts
Input Frequency: 47-63 Hertz
Power Output: 75 Watts at 60°C
Chassis: Series A or B
Location: Chassis - Left Side
Operating Temperature: 32-140°F (0-60°C)
Dimensions:11x14.4x14cm
Weight:1.16kg

1756-PA72 Description

The 1756-PA72 is a Standard Power Supply that is mainly used to deliver power to

the backplane of a 1756 chassis, enabling each of module attached to the chassis to

operate. The 1756-PA72 is designed to accept an input voltage range of 85-265 VAC

with frequency range of 47-63 Hz. It delivers an output power of 75 W @ 0-60 °C

(+32…+140 °F) with Current capacities of 4A at 3.3VDC; 10 A at 5.1VDC and

2.8 A at 24VDC.

The 1756-PA72 has a hold-up time of 5 cycles @ 85VAC, 50/60 Hz; 6 cycles @

120VAC, 50/60 Hz; 6 cycles @ 200VAC, 50/60 Hz and 6 cycles @ 240V AC,

50/60 Hz. Hold-up time refers to the power supply’s reaction from the removal

of the input voltage and DC power failure.

The 1756-PA72 is installed at the left most location of the chassis. It has a dedicated

slot assignment, outside the chassis and does not occupy a slot. It may be installed

in different chassis such as 1756-A4, 1756-A7, 1756-A10, 1756-A13, and

1756-A17, whether Series A, B and C. This power supply weighs approximately

0.16 kg with physical dimensions of 11x14.4x14cm. This module, along the chassis

has an open-type enclosure, therefore, requires installation inside an enclosure that

protects the hardware from industrial contaminants and interferences. The

1756-PA72 may not be used is redundant power supply applications however,

it may also be used in Distributed I/O architecture.

The 1756-PA72 has a power consumption of 25 Watts at 0 to 60 degrees Celsius

(32 to 140 degrees Fahrenheit). This power supply has a power dissipation of 85.3

BTU/hour and a power supply with a maximum inrush current of 20 A. The

1756-PA72 provides built-in overcurrent protection. It is user-supplied at a maximum

of 15 A. The maximum transformer load of this power supply is 100VA and the

voltage isolation is 250 Volts continuous. The 1756-PA72 also has a reinforced

insulation type tested at 3500 Volts DC for 60 seconds. The 1756-PA72 is open

type equipment. This power supply should be installed in an appropriate enclosure

that is designed for certain environmental conditions. The inside of the enclosure

should be accessible only with a tool. Please see the user manual from the NEMA

Standard 250 and IEC 60529 publications for an explanation of the level of

protection afforded by different types of enclosures.
