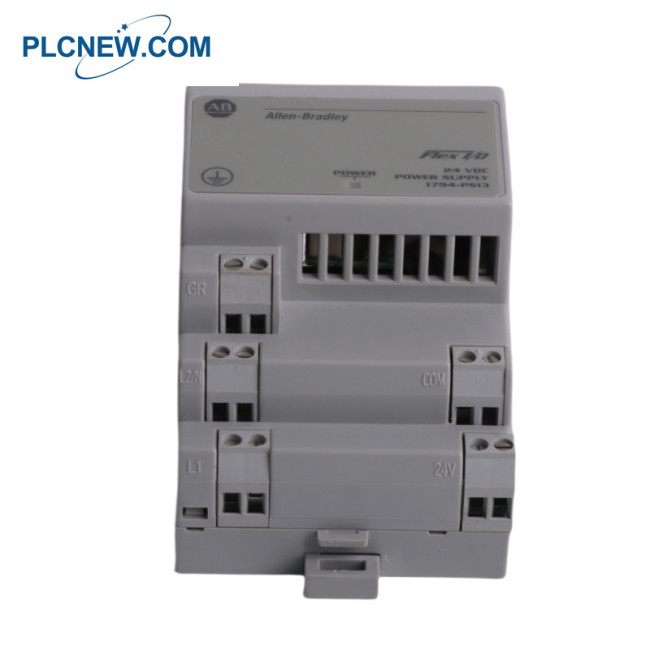

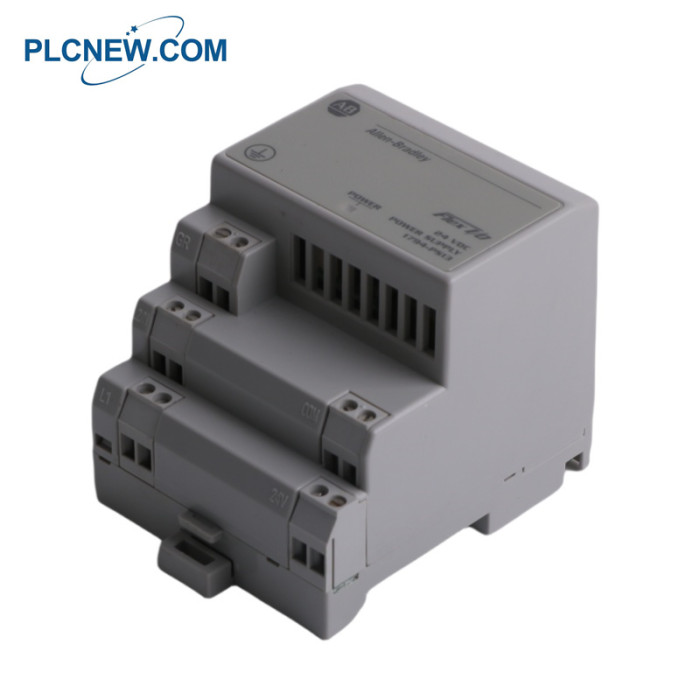

1794-PS13 Flex I/O Power Supply

1794-PS13 Flex I/O Power Supply

1794-PS13 Specification

Thermal Dissipation：23.9 BTU/hr
Output Current：1.3 A
Part Number/Catalog No.：1794-PS13
Product family:Flex I/O system
Product Description:Flex I/O Power Supply
Input Voltage range:85-264VAC
Input Frequency range:47-63 Hz
Nominal input voltage:120V AC, 50/60 Hz; 0.6 A max. 230V AC, 50/60 Hz; 0.42 A max.
Maximum input current:0.7 A
Output power:31.2 Watts

1794-PS13 Description

The 1794-PS13 is a power supply module designed for use within

an industrial automation system. It provides a stable and reliable

power source, capable of supplying power to up to four adapters.

With an input voltage range of 85-264V AC at 47-63 Hz, it delivers

a nominal 24V DC output, making it suitable for various control and

monitoring applications.

This power supply module supports daisy chaining of its output to

efficiently distribute power to connected adapters and can be used

alongside both AC and DC modules. It features a built-in indicator

that lights up green when the output voltage remains between 20.4V DC

and 28V DC. The indicator turns off in cases where no power is applied,

the output voltage exceeds 35V DC, the overvoltage protection is activated,

or the output current surpasses 1.4A. The 1794-PS13 has compact

dimensions of 87 (H) x 69 (W) x 69 (D) mm and utilizes solid or stranded

copper wire within a size range of 0.34-2.5 mm² (22-12 AWG) with an

insulation rating of 75°C (167°F) or higher. The recommended torque

for terminal connections is 0.8 Nm (7 lbs-in.), ensuring secure and

reliable installation.
