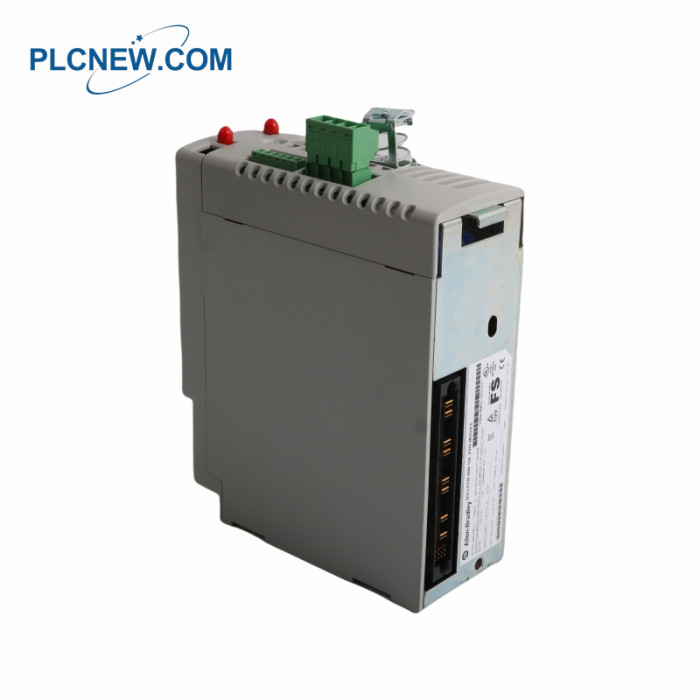

2094-AM02-S Servo Drive Module

2094-AM02-S Servo Drive Module

2094-AM02-S Specification

Type:Servo Drive Module
Model:2094-AM02-S
Manufacturer:PLC Module
Continuous Output Current (rms): 10.6 A
Continuous Output Current (0-pk): 15.0 A
Peak Current (rms): 21.2 A
Peak Current (0-pk): 30.0 A
Continuous Power Out (nominal): 3.4 kW
Voltage Class: 200V
Nominal Drive Voltage: 200/230VAC (3 Phase)
Capacitance: 780 µF
Capacitive Energy Absorption: 29 J
Module Type: AM 200 Volt Class
Nominal Input Voltage: 650 Volts DC
Continuous Current (rms): 21.2 A
Continuous Current (0-pk): 15.0 A
Bandwidth Velocity Loop: 500 Hz
Bandwidth Current Loop: 1300 Hz
Dimensions:7x18.2x23.2cm
Weight:1.66kg

2094-AM02-S Description

The 2094-AM02-S is a part of the Kinetix 6000 multi-axis servo drive family

with an embedded safe torque-off functionality.  This feature is ISO 13849-1

PLe/SIL3-certified with a response time of less than 25 milliseconds.  When the

circuit is tripped, the drive output is disabled.  This removes the motor torque

without shutting down the entire machine.  A flexible solution for demanding

motion applications, the 2094-AM02-S axis module offers advanced control

capabilities in a compact package.  Its modular design simplifies layout, promoting

fast and easy mounting, configuration, operation, and diagnostics.  Ideal applications

for these safety drives include material handling, converting, packaging, and assembly.

The 200 Volt-class 2094-AM02-S comes with a nominal 3.4 kW continuous power

output, 230 Volts voltage rating, and 15 Amps INV continuous current (RMS).  Do

not install it in areas where the ambient temperature exceeds 50 degrees Celsius (122

degrees Fahrenheit).  Following the IAM module setup at the leftmost slot, up to 7

2094-AM02-S modules can be mounted on each 8-axis power rail.  Mount these

modules according to continuous power value (kW) or power utilization from

highest to lowest (left to right).

This method enables multiple configurations available within the partner controller

which can be loaded to the drive anytime depending on the state of the program.

This eliminates the need to manually configure the drive to changes parameters.

This can be predefined within the user program.

To install a Kinetix 6000 assembly, the module with the highest power utilization

must be installed on the left most portion followed by the module with lesser

power utilization.  A kinetix 6000 assembly typically consists of a Power rail,

Integrated Axis Module (IAM), IPM module, One or more Axis modules (AM),

Shunt module and a slot filler which is used to cover a vacant slot.

The 2094-AM02-S has power dissipation of 34 Watts @ 20% utilization;  45 Watts

@ 40%;  57 Watts @ 60%;  70 Watts @ 80% and 84 Watts @ 100%.  This Axis

module is a 200VAC class Axis Module with continuous current of 15 A and

continuous output power of 3.4 kW.  It has an efficiency of 98% and short-circuit

current rating of 200,000 A (rms) symmetrical and integrated Safe Torque-off feature.
