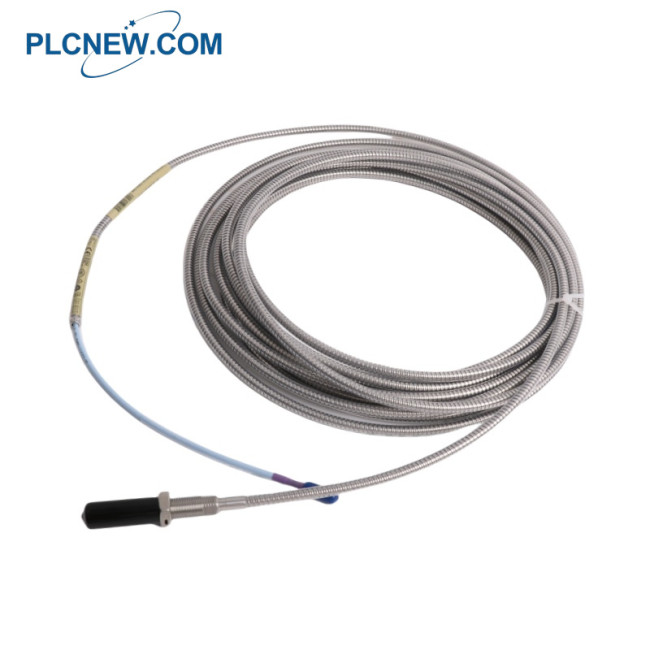

330704-000-050-90-02-05 Bently Nevada 3300 XL 11 mm Proximity Probes

330704-000-050-90-02-05 Bently Nevada 3300 XL 11 mm Proximity Probes

330704-000-050-90-02-05 Bently Nevada Description

The 3300 XL 11 mm Proximity Sensor System includes
- 3300 XL 11 mm probe
- 3300 XL 11 mm extension cable
- 3300 XL 11 mm Proximitor® Sensor

The 3300 XL 11 mm Proximity Sensor System has a 3.94 V/mm (100 mV/mil) output for non-contact vibration measurements. 3300 XL 11 mm proximity sensor system with 3.94 V/mm (100 mV/mil) output for non-contact vibration measurements on fluid membrane bearing machines for non-contact vibration and displacement measurements. 11 mm large tip allows this sensor system to be longer linear range than our standard 3300 XL 8 mm sensor system. It is primarily used in the following applications that require a longer linear range applications with longer ranges:
- Axial (thrust) position measurement
- Differential slope expansion measurement in steam turbines
- Rod position or rod drop measurements in reciprocating compressors
- Tachometer and zero speed measurements
- Phase reference (Keyphasor®) signals

330704-000-050-90-02-05 Bently Nevada Specifications

A:Unthreaded Length Option
Order in increments of 2 mm.
Length configuration:
Maximum unthreaded
length: 224 mm
Minimum unthreaded length:
0 mm
Example: 0 6 0 = 60 mm

B: Overall Case Length Option
Order in increments of 2 mm.
Metric thread configurations:
Maximum length:250 mm
Minimum length:26 mm
Example: 0 6 0 = 60 mm

C: Total Length Option
10 1.0 meter (3.3 feet)
50 5.0 meters (16.4 feet)
90 9.0 meters (29.5 feet)
