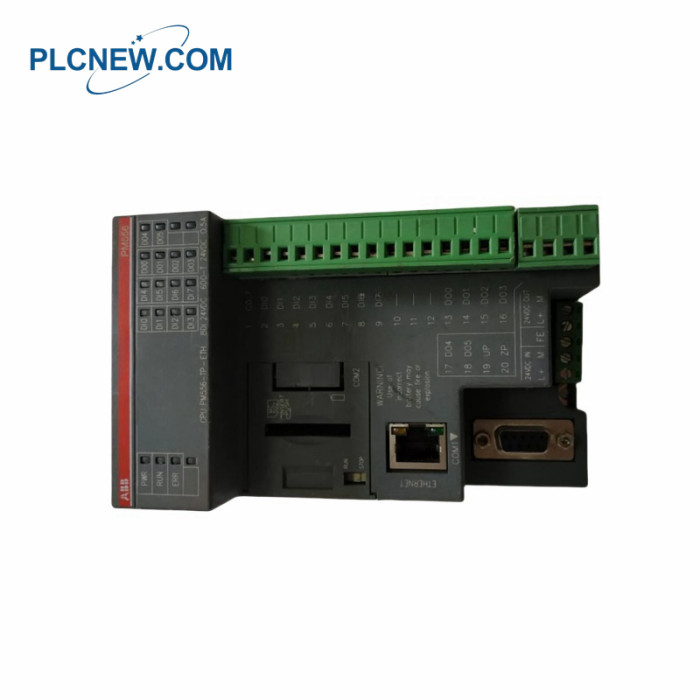

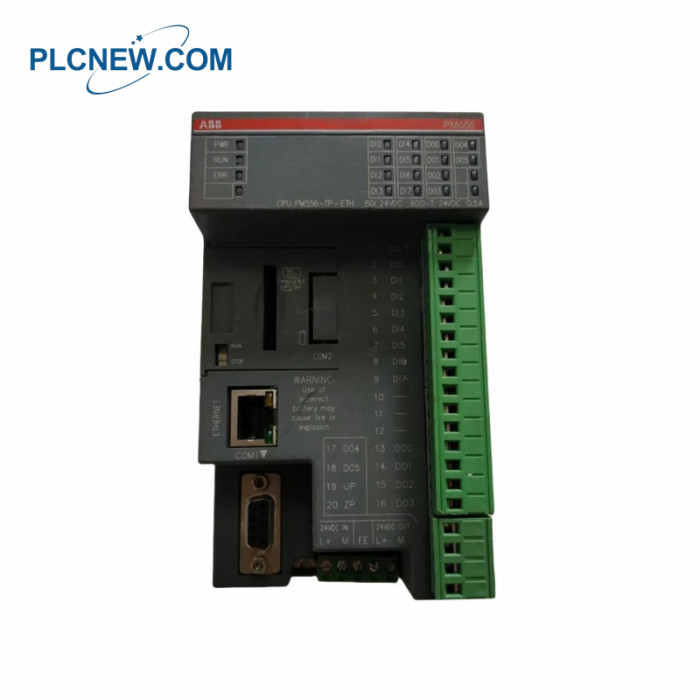

ABB PM566-TP-EYH CPU module

ABB PM566-TP-EYH CPU module

ABB PM566-TP-EYH Specification

Type:CPU module
Model:PM566-TP-EYH
Manufacturer:ABB
Memory Size: 642 kB
Memory Type (User Data): RAM
Controller Processing Time: 0.00008 ms
Analog Inputs: 2
Analog Outputs: 1
Number of Digital Inputs: 6
Number of Digital Outputs: 6
Number of Digital Configurable I/Os: 0
Input Voltage Type: DC
Rated Voltage (Ur): 24 V DC
Supply Voltage: 20.4 – 28.8 V DC
Product Net Weight: 0.282 kg
Product Net Depth / Length: 74 mm
Product Net Height: 135 mm
Product Net Width: 82 mm
Gross Weight: 0.447 kg

ABB PM566-TP-EYH Description

The ABB PM566-TP-EYH is a high-performance CPU module designed for

industrial control applications. As part of the AC500 series, it offers fast processing,

reliable operation, and flexible I/O capabilities, making it suitable for

demanding environments. With 642 kB of RAM for user data storage and a

cycle time of just 0.00008 ms, it ensures real-time responsiveness for precise control tasks.

This module features 2 analog inputs, 1 analog output, 6 digital inputs, and 6 digital

outputs, providing seamless integration into systems. It operates on a 24 V DC power

supply (range: 20.4 – 28.8 V DC) and is built to handle industrial conditions with

stable performance and durability.

With a compact form factor (74 mm depth, 135 mm height, 82 mm width) and a

lightweight design (0.282 kg net weight), the PM566-TP-EYH is easy to install in

control panels. Its high-speed processing, robust construction, and versatile

connectivity make it an excellent choice for PLC-based, machine control, and

industrial process management.
