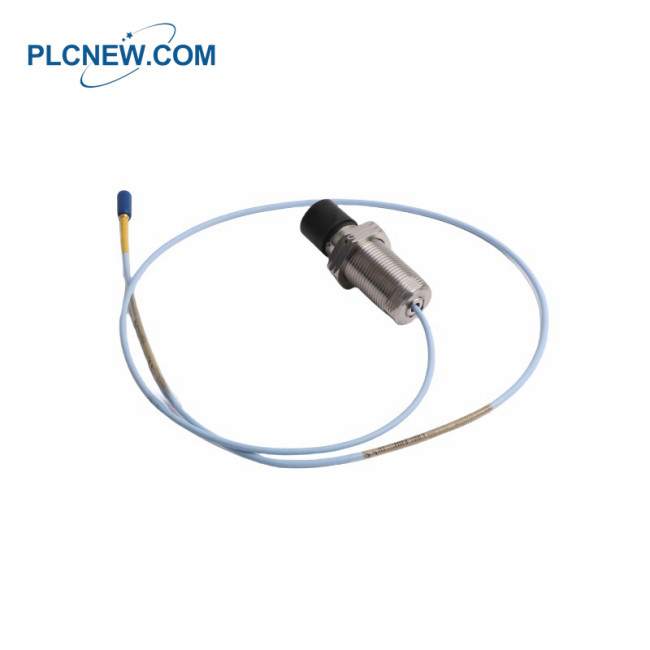

BENTLY NEVADA 330851-02-000-066-10-00-05 Proximity Transducer System

BENTLY NEVADA 330851-02-000-066-10-00-05 Proximity Transducer System

BENTLY NEVADA 330851-02-000-066-10-00-05 Specification

Manufacturer:BENTLY NEVADA
Model:330851-02-000-066-10-00-05
Product Type:Proximity Transducer System
Linear Range: 12.7 mm (500 mils)
Operating Temperature: Up to 200°C (392°F), intermittent up to 250°C (482°F)
Output Signal: 0.787 V/mm (20 mV/mil)
Power Supply: -17.5 Vdc to -26 Vdc
Connections: SpringLoc terminal strips for easy wiring
Probe Material: AISI 4140 steel
Probe Length: Various lengths available
Probe Case Type Option :0 2 = M30x2 Thread
Unthreaded Length Option :0mm
Overall Case Length Option:060=60mm,
Total Length Option :50=5.0 metres (16.4 feet)

BENTLY NEVADA 330851-02-000-066-10-00-05 Description

The 3300 XL 25 mm Proximitor Sensor retains the advanced features of its predecessor,

the 3300 XL Proximitor Sensors. Its slim design enables it to be mounted in either

high-density DIN-rail installations or more traditional panel mount configurations.

Enhanced RFI/EMI immunity allows the 3300 XL Proximitor Sensor to meet European

CE mark approvals without the need for special mounting considerations. This

immunity also ensures that the transducer system is not negatively impacted by nearby

high-frequency radio signals. The SpringLoc terminal strips on the Proximitor Sensor

require no special installation tools, making field wiring connections faster and

more reliable.

Two transducers are used in this configuration, with at least one transducer viewing a

ramp on the rotor and the second transducer either viewing a separate ramp or a

different location on the rotor to account for radial movement. Although this setup

introduces some measurement error, it allows for the measurement of a longer total

drive-end (DE) distance compared to the complementary measurement.

When selecting a mounting method, factors such as the size of the available target,

the expected amount of rotor axial movement, and the type of DE target in the machine

(e.g., collar versus ramp) must be considered. If sufficient collar height is available,

the preferred configuration is to use two transducers observing the same side of the

collar. This setup provides redundant measurements for added reliability.
