BENTLY NEVADA 330851-04-000-030-10-00-05 300 XL 25MM Proximity Probe

BENTLY NEVADA 330851-04-000-030-10-00-05 300 XL 25MM Proximity Probe

BENTLY NEVADA 330851-04-000-030-10-00-05 Specification

Manufacturer:BENTLY NEVADA
Model:330851-04-000-030-10-00-05
Product Type:300 XL 25MM Proximity Probe
Recommended Torque: Finger tight
Maximum Torque: 0.565 N•m (5 in•lb)
Minimum Bend Radius (with or without SST armor): 25.4 mm (1.0 in)
Short Bracket Horizontal: ±25.4 mm (±1.0 in)
Long Bracket Horizontal: ±76.2 mm (±3.0 in)
Probe Adapter Vertical Adjustment: 25.4 mm (1.00 in) total travel
Extension Cable Weight: 45 g/m (0.5 oz/ft)
Armored Extension Cable Weight: 140 g/m (1.5 oz/ft)
Proximitor Sensor Weight: 255 g (9 oz)
Operating Temperature: -51°C to +100°C
Storage Temperature: -51°C to +105°C

BENTLY NEVADA 330851-04-000-030-10-00-05 Description

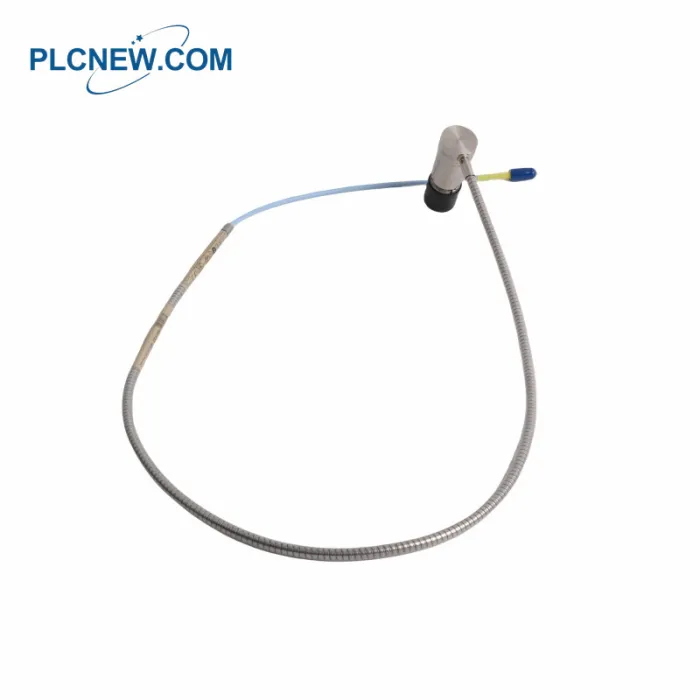

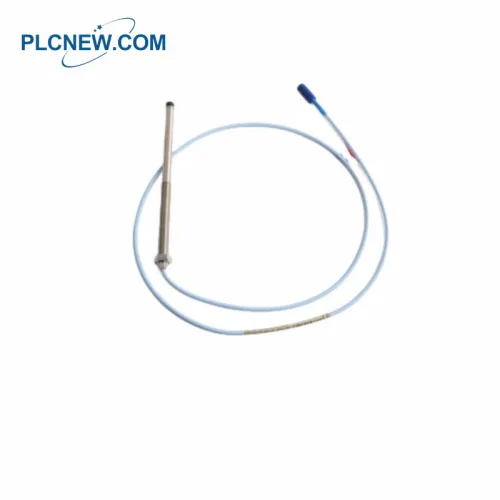

The Bently Nevada 330851-04-000-030-10-00-05 3300 XL 25mm Proximity Probe

is a high-performance transducer system designed for measuring displacement in

industrial applications, especially in environments where precision and reliability are

critical. This probe is ideal for use in large steam turbine generators to monitor

differential expansion (DE) caused by variations in the growth rates of the turbine

rotor and stator.

The 3300 XL 25mm probe features robust construction with AISI 304 stainless

steel, ensuring durability and resistance to harsh operating conditions. It offers

excellent survivability in high-temperature environments and has a high linear range

of 12.7 mm (500 mils), providing accurate and reliable measurements.

The system includes the probe, extension cable, and the Proximitor Sensor, which is

known for its enhanced immunity to RFI/EMI and its ability to perform well even in

the presence of high-frequency radio signals. This makes it an excellent choice for

industrial settings where electromagnetic interference is a concern.

The probe can be mounted using a variety of configurations and comes with

optional armored extension cables for added protection in challenging e

nvironments. Additionally, the system supports a broad range of temperature

variations, ensuring optimal performance even under extreme conditions.
