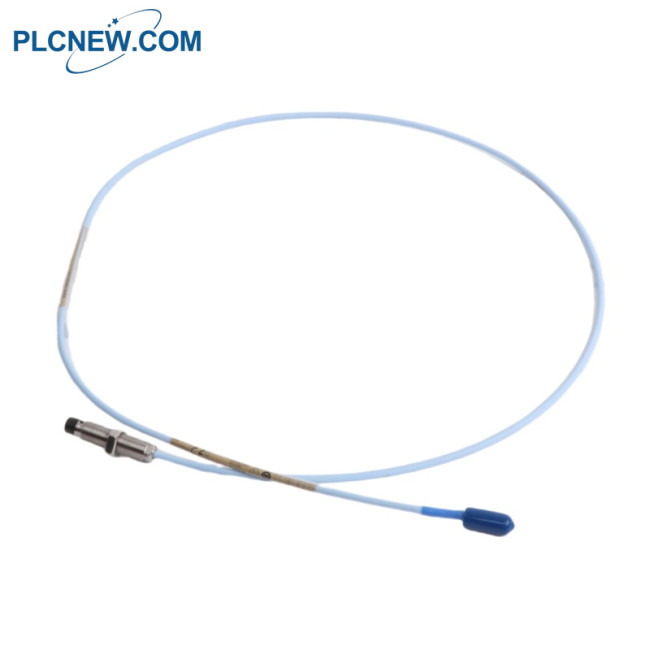

Bently Nevada 330103-00-10-10-11-05 3300 XL 8 mm Proximity Probes

Bently Nevada 330103-00-10-10-11-05 3300 XL 8 mm Proximity Probes

Bently Nevada 330103-00-10-10-11-05 Specification

A: Unthreaded Length Option
Order in increments of 10 mm
Length configurations:
Maximum unthreaded length: 230 mm
Minimum unthreaded length: 0 mm
Example: 0 6 = 60 mm

B: Overall Case Length Option
Order in increments of 10 mm
Metric thread configurations:
Maximum case length: 250 mm
Minimum case length: 20 mm
Example: 0 6 = 60 mm

C: Total Length Option
05:0.5 meter (1.6 feet)
10:1.0 meter (3.3 feet)
15:1.5 meter (4.9 feet)
20:2.0 meters (6.6 feet)
50:5.0 meters (16.4 feet)
90:9.0 meters (29.5 feet)

Bently Nevada 330103-00-10-10-11-05 Description

The 3300 XL 8 mm Proximity Transducer System consists of:
One 3300 XL 8 mm probe,
One 3300 XL extension cablel, and
One 3300 XL Proximitor Sensor.

The system provides an output voltage that is directlyproportional to the distance

between the probe tip and theobserved conductive surface and can measure both

static(position) and dynamic (vibration) values. The system'sprimary applications are

vibration and positionmeasurements on fluid-film bearing machines, as well asKeyphasor

reference and speed measurements.

The 330103-00-10-10-11-05 3300 XL 8 mm system delivers the most advancedperformance

in our eddy current proximity transducersystems. The standard 3300 XL 8 mm 5-meter system

alsofully complies with the American Petroleum institute's (APl)670 Standard for mechanical

configuration, linear range,accuracy, and temperature stability. All 3300 XL 8 mmproximity

transducer systems provide this level ofperformance and support complete interchangeability

ofprobes,extension cables, and Proximitor sensors, eliminatingthe need to match or bench

calibrate individual components.

Each 330103-00-10-10-11-05 3300 XL 8 mm Transducer System component isbackward compatible

and interchangeable4 with other non-XL3300 series 5 mm and 8 mm transducer systemcomponents5,

This compatibility includes the 3300 5 mmprobe, for applications in which an 8 mm probe is too

largefor the available mounting space.
