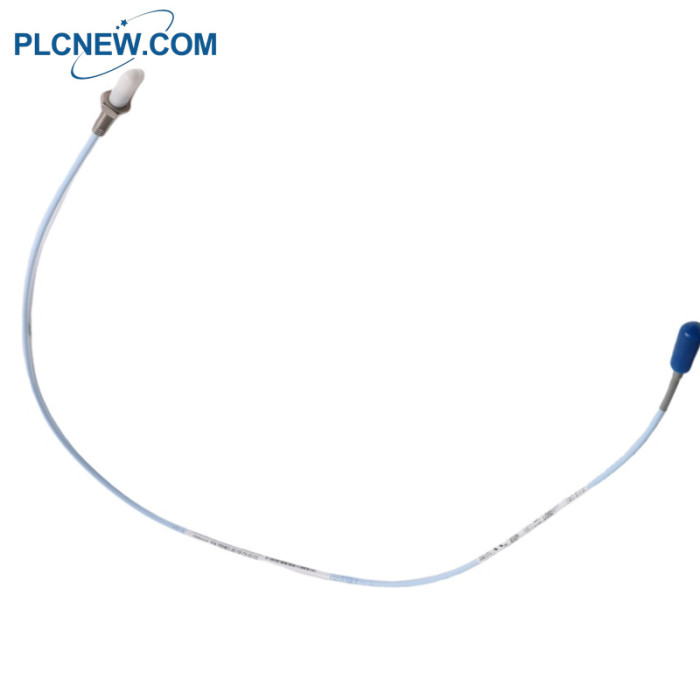

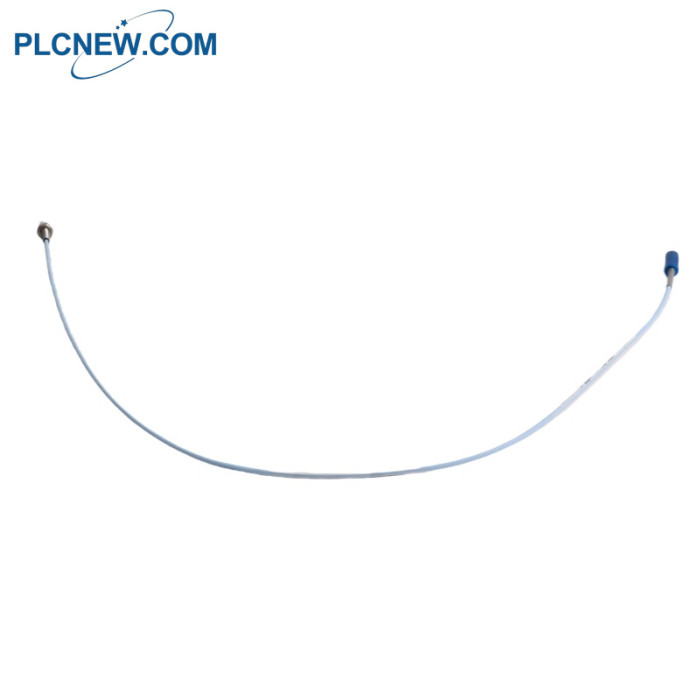

Bently Nevada 330901-00-90-10-02-05 3300 NSv Proximity Probes

Bently Nevada 330901-00-90-10-02-05 3300 NSv Proximity Probes

Bently Nevada 330901-00-90-10-02-05 Specification

Manufacturer : Bently Nevada
Product No : 330901-00-90-05-02-00
Product Type : 3300 NSv Proximity Probes
Unthreaded Length Option : 00 = 0.0 in
Overall Case Length Option : 90 = 9.0 in
Total Length Option : 05 = 0.5 metre (20 in)
Connector and Cable-Type Option : 02 = Miniature coaxial

ClickLoc connector, standard cable
Agency Approval Option : 00 = Not required
Probe Case Material : AISI304 stainless steel (SST).
Probe Tip Material : Polyphenylene sulfide (PPS).

Bently Nevada 330901-00-90-10-02-05 Description

The 3300 XL NSv Proximity Transducer system is intended foruse with centrifugal

air compressors,refrigerationcompressors, process gas compressors, and other

machineswith tight installation requirements. The 3300 XL NSv ProximityTransducer System consists of:
a 3300 NSv probe
a 3300 NSv extension cable
a 3300 XL NSv Proximitor sensor

The primary uses for the 3300 XL NSv Transducer system arefor areas where counter

bore,sideview, or rearviewrestrictions limit the use of standard Bently Nevada 3300 and

3300 XL 5 and 8 mm Transducer Systems. lt is also ideal forsmall target applications,

such as measuring radial vibrationon shafts smaller than 5l mm(2 in) or axial position on

flattargets smaller than 15 mm (0.6 in).it is primarily used in the following applications on

fluid-filmed bearing machineswhere a small shaft or reduced side-view is present:Radial

vibration and radial position measurementsAxial (thrust) positionmeasurementsTachometer

and zero speed measurements Phase reference (Keyphasor signals)
The 3300 XL NSv Transducer system design allows it toreplace both the 3300 RAM Transducer

Systems and the3000-seriesor 7000-series190T ransducer System.Upgradesfrom the 3300 RAM

system to the 3300 XL NSv system mayuse the existing probe, extension cable, and monitoring

system with 3300 XL NSv ProximitorSensor.Upgrades from the 3000-series or7000-series Transducer

System must replacethe probe,extension cable, and ProximitorSensor with Nsv components.

The 3300 XL NSv Transducer system has an Average scale Factor of 7.87 v/mm(200mv/mil),which

is the most common output foreddy current transducers.its enhanced side-view and small target

characteristics give it ashorter linear range than the Bently Nevada3300 XL-series 5 and 8 mm

Transducer System.The 1.5 mm(60 mils) of linear range exceedsthe linear range of the 3000-series

190Transducer System.
