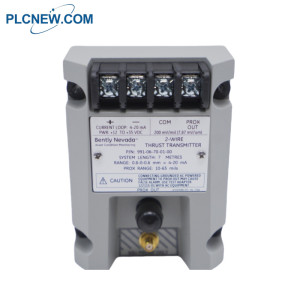

Bently Nevada 991-06-70-01-00 Thrust Transmitter

Bently Nevada 991-06-70-01-00 Thrust Transmitter

Bently Nevada 991-06-70-01-00 Specification

Part Number: 991-06-70-01-00
Model: Thrust Transmitter
Manufacturer: Bently Nevada
Condition: New & Original in Factory Packing
Factory Warranty: 12 Months

Ordering Information
Model: 991 - Thrust Transmitter
Full-scale Option: -06 - 0.6 -0- 0.6 mm
System Length Option: -70 - 7.0 metres (23.0 feet)
Mounting Option: -01 - 35 mm DIN-rail clips
Agency Approval Option: -00 - Not required

Bently Nevada 991-06-70-01-00 Description

The 991 Thrust Transmitter is intended primarily for the original equipment manufacturers (OEMs) of centrifugal air compressors or small pumps, motors, or fans who prefer to provide a simple 4 to 20 mA proportional axial displacement (thrust) signal as the input to their machinery control system. The transmitter is a 2-wire, loop-powered device that accepts input from our 3300 NSv proximity probe and its matching extension cable (available in 5 m and 7 m system length options). The transmitter conditions the signal into appropriate engineering units proportional to the shaft’s axial position1, and provides it as a 4 to 20 mA industry-standard signal for input to the control system where machinery protection alarming and logic occurs.

The 991 transmitter provides the following notable features:
-Integrated Proximitor* Sensor requires no external unit
-Non-isolated “PROX OUT " and "COM" terminals plus a coaxial connector provide a dynamic vibration and gap voltage signal output for diagnostics.
-Non-interacting zero and span potentiometers under the Transmitter label supports loop adjustment.
-Test Input pin allows quick verification of loop signal output, using a variable DC voltage source as the input.
-A Power-up Inhibit circuit eliminates signal errors due to line voltage transients.
-A Not OK/Signal Defeat circuit prevents high outputs or false alarms due to a faulty proximity probe or loose connection.
-Choice of DIN-rail clips or bulkhead mounting screws as standard options simplifies mounting.
-Potted construction for high humidity (up to 100% condensing) environments.

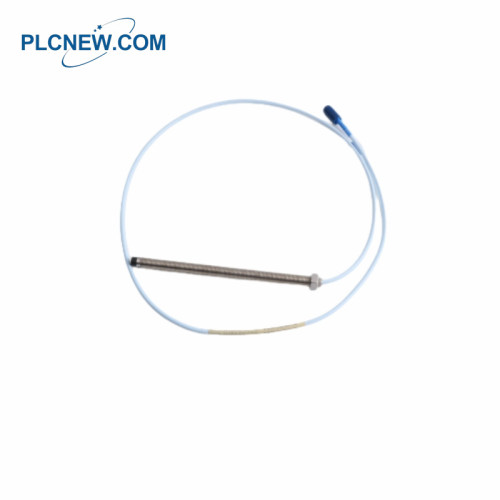

-Compatibility with 3300 NSv proximity probe allows transducer installation in small areas with minimal clearance, typical of centrifugal air compressors.
