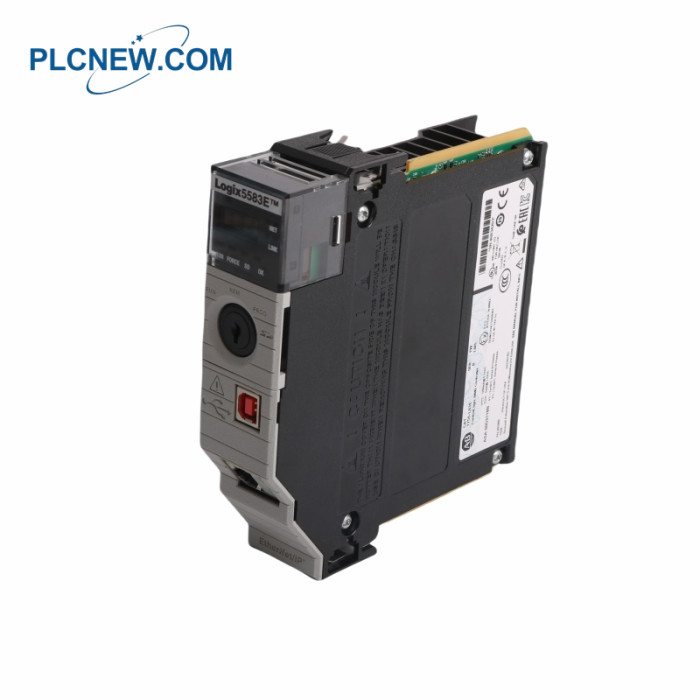

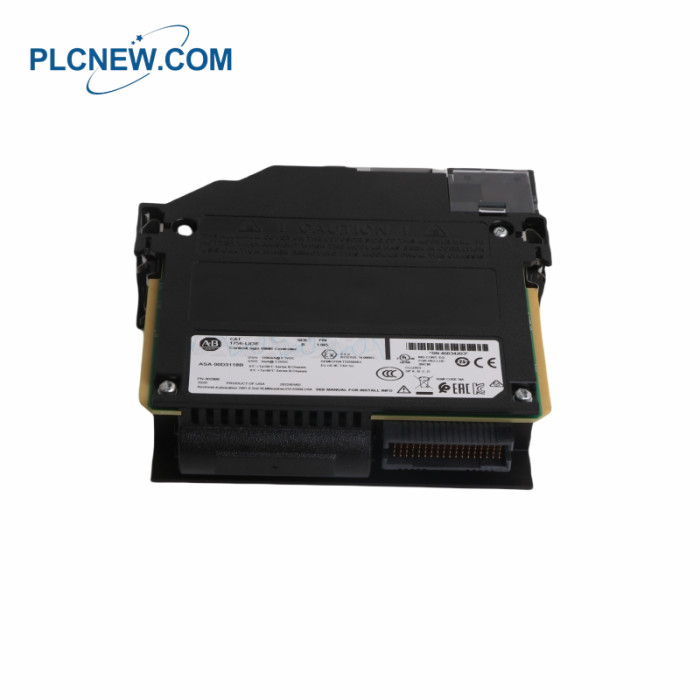

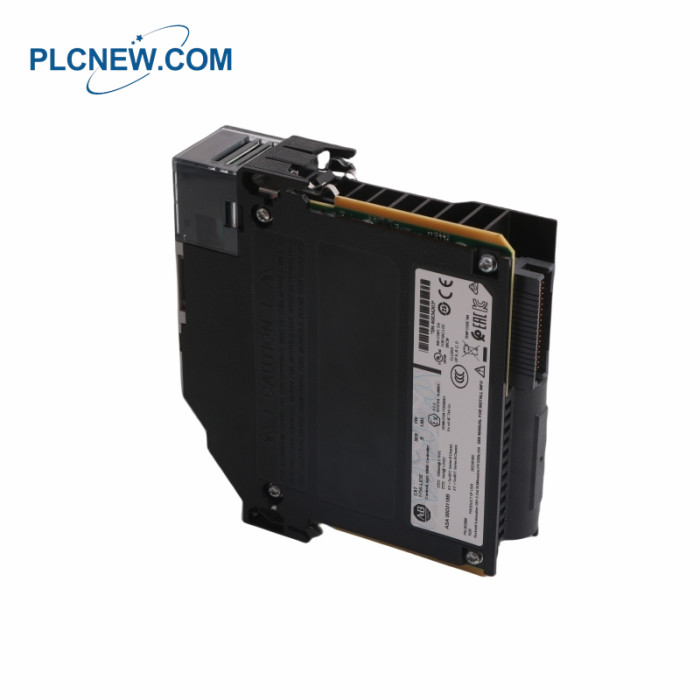

1756-L83ES Processor

1756-L83ES Processor

Specification→1756-L83ES

Model Type:Processor
Manufacturer:1756-L83ES
Operating Voltage:220 V
Power Consumption:Max.  50 W
Operating Frequency:Up to 1 MHz
Memory Capacity:1 MB of RAM, 4 MB of ROM
Communication Interfaces:RS-232, RS-485, Ethernet
Processing Speed:Up to 20 MIPS
Input/Output Channels:8 Analog Inputs, 8 Analog Outputs
Operating Temperature Range:-20°C to +60°C
Part Number: 1756-L83ES
Supported EtherNet/IP nodes: 250 nodes max.
Safety communication options: EtherNet/IP, ControlNet, DeviceNet
Controller tasks: 31 standard tasks / 1 safety task
Supported number of programs per task: 1000
User memory: 10 megabytes
Safety memory: 5 megabytes
Digital I/O / Analog I/O: 128,000 / 4000 max.
Built-in communication: 1 USB port (USB 2.0), embedded Ethernet port
Ethernet performance: 10/100/1000 megabits per second
Current draw at 1.2 Volts DC: 5.0 milli Amps
Current draw at 5.1 Volts DC: 1.2 Amps
Weight:0.4kg
Dimensions:3.5x14x14.5cm

Description→1756-L83ES

The controller with the catalog number 1756-L83ES is made and designed by and it

is part of the Bulletin 1756 series. offers controllers that provide scalable solutions

with embedded functionalities and a wide range of features. The controllers inherit all

the functions from the older units and they are able to perform online editing, forcing,

and similar activities. The 1756-L83ES controller is built in accordance with standards

like the CE, RCM, KC, CSA, and the c-UL-us standards. The allowed operating

temperature range is 0 to 60 degrees Celsius or 32 to 140 degrees Fahrenheit, while

storage temperature ranges from -40 to 85 degrees Celsius (-40 to 185 degrees

Fahrenheit). Besides that, the unit has moderate tolerance to shock, vibration, and

other conditions common in industrial environments.

The 1756-L83ES controller is a chassis-based component that can be installed into

any chassis slot. The controller has an isolation voltage of 50 Volts (continuous) and

it is type tested at 1000 Volts AC for the duration of 60 seconds. The unit has a current

draw of 5 milliAmps at 1.2 Volts DC and a current draw of 1.2 Amps at 5.1 Volts DC.

The 1756-L83ES controller dissipates a power level of 21.2 BTU per hour and it has

a weight of 0.39 kilograms or 0.86 pounds. This controller variant has a user memory

of 10 megabytes and a safety memory of 5 megabytes. The 1756-L83ES controller

features 31 standard tasks and 1 safety task. Also, the controller supports 1000 programs

per task and connections through the built-in USB port. The USB port supports USB

version 2.0 at a full speed of 12 megabits per second. Besides this, the

1756-L83ES controller has an embedded Ethernet port and it supports up to 250

EtherNet/IP nodes.
