1771-ASB I/O Adapter Module

1771-ASB I/O Adapter Module

1771-ASB I/O Specification

Part Number/Catalog No.:1771-ASB
Module Type:I/O Adapter Module
Product Family:SLC 500
Port:Universal Remote I/O Adapter
Product Type:RIO Adapter Module
Rate of Communication:57.6 kbit/second, 115 kbit/second, 230 kbit/second
Connectors:Wiring Arm 1771-WB
Backplane Current (at 5 Volts):1.0 Amps
Communication Port:Remote I/O (RIO)

1771-ASB I/O Description

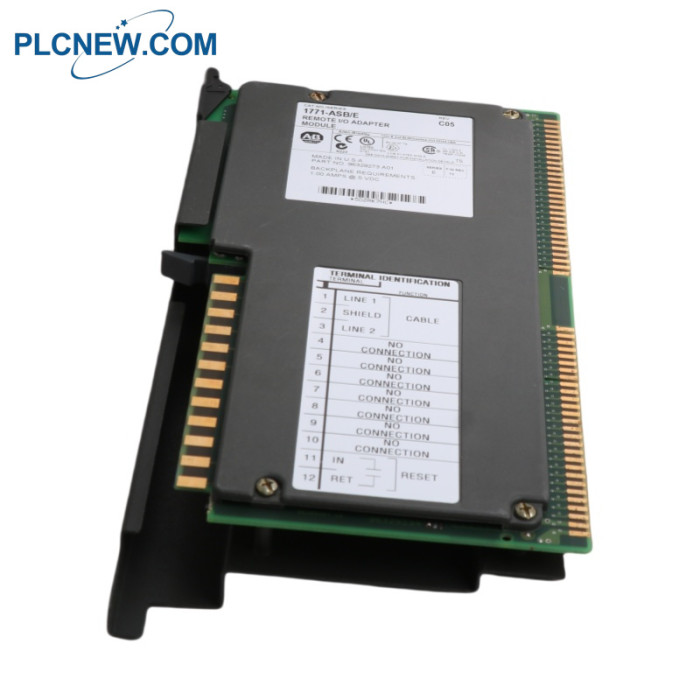

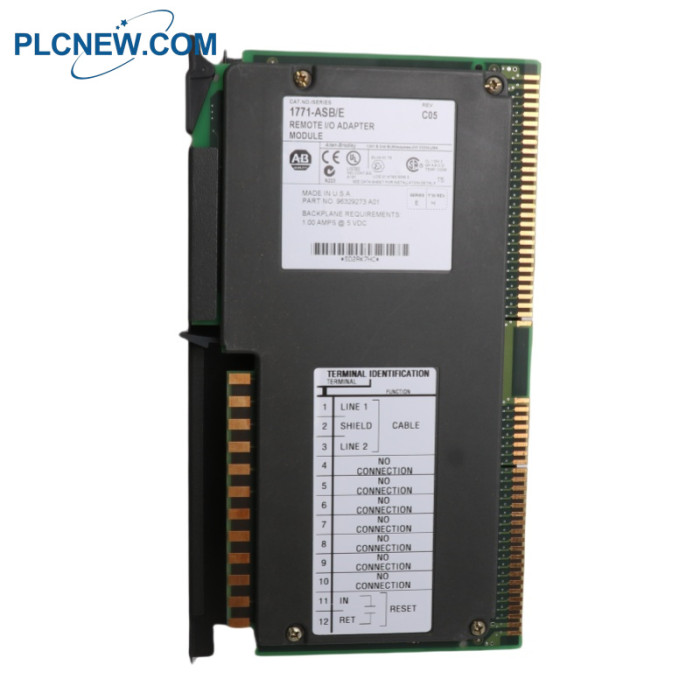

The 1771-ASB is a Universal Remote I/O Adapter Module designed for integration

with PLC systems. It interfaces with I/O modules in an I/O chassis through a Remote

I/O (RIO) scanner port, facilitating communication between the processor and I/O

devices over an I/O link. By using this module instead of direct wiring, installation,

startup, and maintenance costs are reduced, as the I/O is positioned closer to the

actuators and sensors. It supports up to 32 I/O-adapter devices via the I/O link and

utilizes 82 Ohm or 150 Ohm terminating resistors.

The 1771-ASB module operates at communication rates of 57.6 Kbps, 115 Kbps, and 230 Kbps,

with a weight of 1.9 pounds. It has a backplane current load of 1 A at 5 Volts DC and a maximum

power dissipation of 5.2W. This module requires a remote I/O adapter port for connection and

must be mounted in the left-most slot of the I/O chassis, which is controlled by the processor.

For wiring, the 1770-CD Belden 9463 or equivalent cable should be used. The module includes

diagnostic indicators for Active, Adapter Fault, and I/O Rack faults, as well as 2 switch assemblies

and a field wiring arm. It supports data transmission over a range of up to 2500 feet at 230.4K baud

and provides enhanced backplane scanning and faster data transmission. The 1771-ASB improves

scan time and optimizes I/O image space by scanning all slots except the last 4, offering better

troubleshooting capabilities with its advanced diagnostic features.
