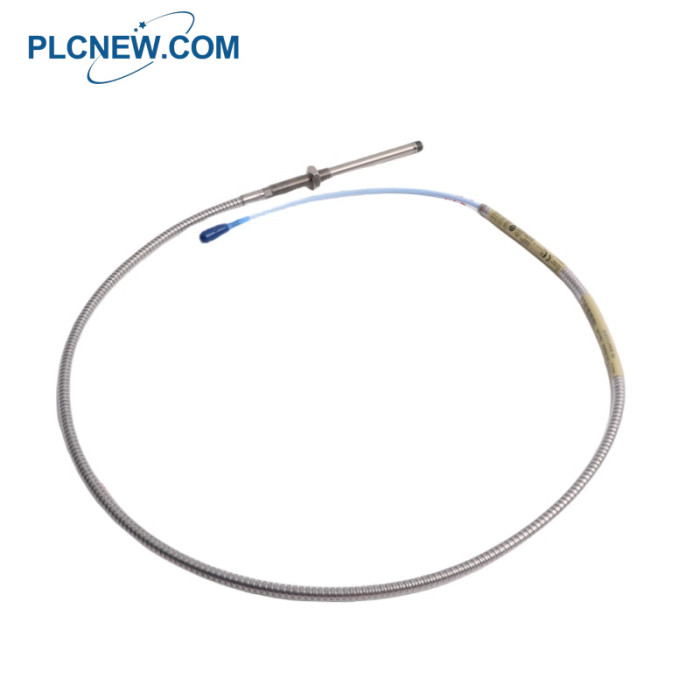

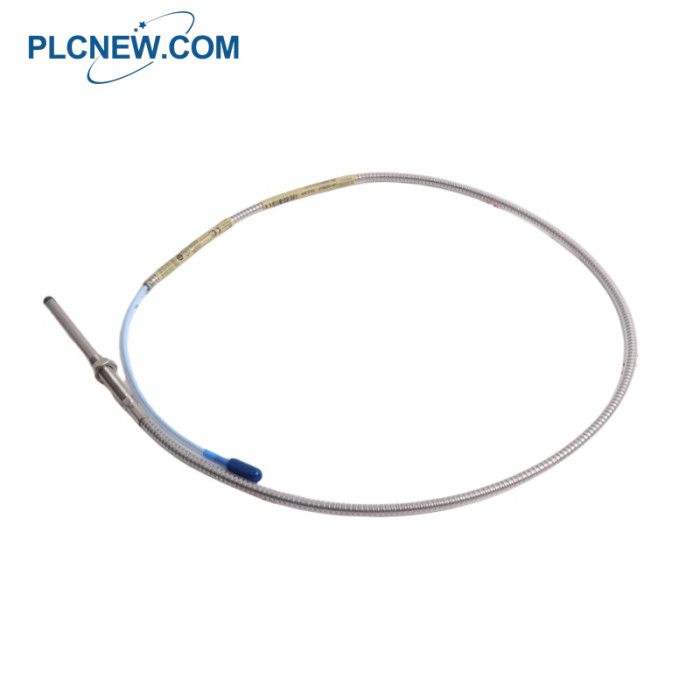

330104-00-16-10-11-00 Bently Nevada 3300 XL 8 mm Proximity Probes

330104-00-16-10-11-00 Bently Nevada 3300 XL 8 mm Proximity Probes

330104-00-16-10-11-00 Bently Nevada Specifications

A: Unthreaded Length Option
Order in increments of 10 mm
Length configurations:
Maximum unthreaded length: 230 mm
Minimum unthreaded length: 0 mm
Example: 0 6 = 60 mm

B: Overall Case Length Option
Order in increments of 10 mm
Metric thread configurations:
Maximum case length: 250 mm
Minimum case length: 20 mm
Example: 0 6 = 60 mm

C: Total Length Option
05 0.5 meter (1.6 feet)
10 1.0 meter (3.3 feet)
15 1.5 meter (4.9 feet)
20 2.0 meters (6.6 feet)
50 5.0 meters (16.4 feet)
90 9.0 meters (29.5 feet)

330104-00-16-10-11-00 Bently Nevada Description

3300 XL 8 mm Proximity Transducer System
System Components:
One 3300 XL 8 mm Probe
One 3300 XL Extension Cable
One 3300 XL Proximitor Sensor
Key Features:
Output: The system provides an output voltage directly proportional to the

distance between the probe tip and the observed conductive surface.
Capable of measuring both static (position) and dynamic (vibration) values.
Primary Applications:
Vibration and position measurements on fluid-film bearing machines.
Keyphasor reference and speed measurements.
Performance & Compliance:
The 3300 XL 8 mm system offers advanced performance in eddy current proximity transducer technology.
The standard 5-meter system fully complies with the American Petroleum Institute (API) 670 Standard for:
Mechanical configuration
Linear range
Accuracy
Temperature stability
Interchangeability:
All 3300 XL 8 mm systems support the complete interchangeability of probes, extension cables,

and Proximitor sensors, eliminating the need to match or bench calibrate individual components.
Compatibility:
Each component of the 3300 XL 8 mm Transducer System is backward compatible and interchangeable

with other non-XL 3300 series 5 mm and 8 mm transducer system components.
This includes the 3300 5 mm probe, ideal for applications where the 8 mm probe is too large for the

available mounting space.

Welcome to contact→【Sales Manager】:Lisa

 sales7@amikon.cn       86-18965423501   AMKPLC

Please note that here is only part of the model, if you have the need, please contact us.
