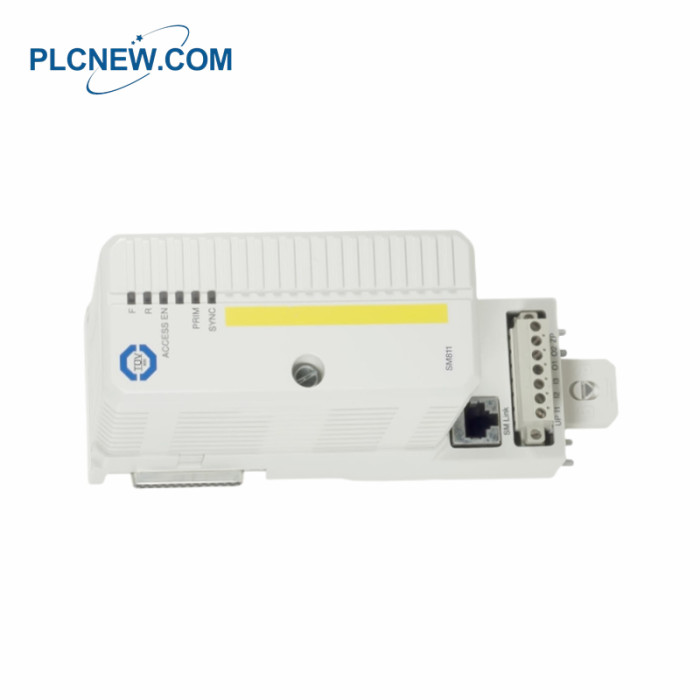

ABB SM812K01 Safety CPU module

ABB SM812K01 Safety CPU module

ABB SM812K01 Specification

Brand:ABB
Model:SM812K01
Type:Safety CPU module
Processor Type: MPC866 microprocessor
Switch-over Time in Redundant Configuration: Maximum 10 ms
Firmware Storage: 4 MB Flash PROM
Power Supply: 24 V DC (operating range: 19.2-30 V DC)
Power Consumption:Typical: 160 mA
Operating Temperature: +5 to +55 °C (+41 to +131 °F)
Storage Temperature: -40 to +70 °C (-40 to +158 °F)
Temperature Changes: 3 °C/min (per IEC/EN 61131-2)
Pollution Degree: Degree 2 (per IEC/EN 61131-2)
Corrosion Protection: G3 (compliant to ISA 71.04)
Relative Humidity: 5 to 95%, non-condensing
Emitted Noise: < 55 dB (A)
Vibration Resistance:
10 < f < 50 Hz: 0.0375 mm amplitude
Rated Isolation Voltage: 500 V AC
Dielectric Test Voltage: 50 V
Protection Class: IP20 (per EN 60529, IEC 529)
Altitude: 2000 m (per IEC/EN 61131-2)
Emission & Immunity: EN 61000-6-4, EN 61000-6-2
Environmental Conditions: Industrial
Width 59 mm (2.9 in.)
Height 186 mm (7.3 in.)
Depth 127.5 (5.0 in.)
Weight (including base) 0.7 kg (1.5 lbs)

ABB SM812K01 Description

The SM812K01 module is designed to provide intelligent supervision for controllers

during non-SIL and SIL1-2 operations. When paired with the PM857, PM863, or

PM867 controllers, it forms a 1oo2 diverse structure for SIL3 applications, ensuring

high safety and reliability.

Key Features:

Microprocessor: Powered by the MPC866 microprocessor, running at 133 MHz.

Memory: Equipped with 64 MB RAM to support robust performance.
Supervision: Provides supervision of the PM857, PM863, and PM867 controllers

during SIL1-2 operations and together with these controllers, forms a 1oo2

diverse architecture for SIL3 applications.
Redundancy Support: Supports redundancy and high-availability setups. Multiple

SM812 modules can work together in redundant configurations with the redundant

CPUs.
Hot Swap: Supports hot swap, enabling seamless integration without system downtime.

Synchronization Link (SM Link): Includes a dedicated SM Link for synchronizing

redundant pairs during hot-insertion and online upgrades, ensuring data consistency

between two SM812 modules in a redundant setup.
Overvoltage and Internal Voltage Monitoring: Provides overvoltage monitoring and

internal voltage monitoring to protect the system.
Safety I/O: Includes a connector with three digital inputs and two digital outputs that

are used for safety-related digital I/O (not for process I/O).
