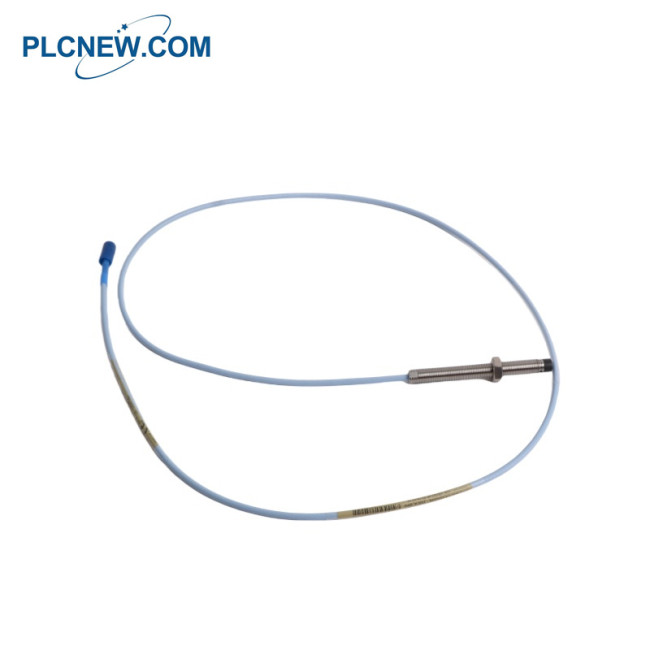

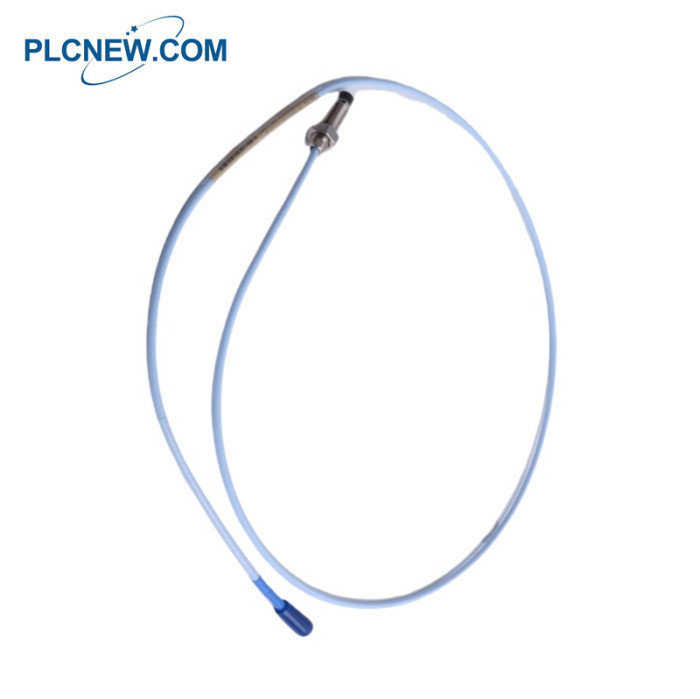

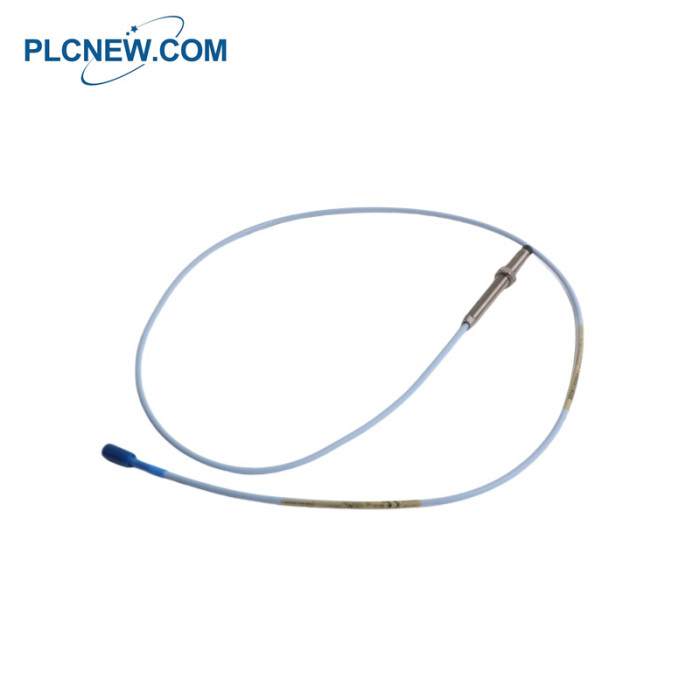

Bently Nevada 330101-25-44-10-02-05 3300 8mmXL Proximity Probes

Bently Nevada 330101-25-44-10-02-05 3300 8mmXL Proximity Probes

Bently Nevada 330101-25-44-10-02-05 Specification

A: Unthreaded Length Option
Order in increments of 0.1 in
Length configurations:
Maximum unthreaded length: 8.8 in
Minimum unthreaded length: 0.0 in
Example: 0 4 = 0.4 in

B: Overall Case Length Option
Order in increments of 0.1 in
Threaded length configurations:
Maximum case length: 9.6 in
Minimum case length: 0.8 in
Example: 2 4 = 2.4 in

C: Total Length Option
0 5：0.5 metre (1.6 feet)
1 0：1.0 metre (3.3 feet)
1 5：1.5 metre (4.9 feet)
2 0：2.0 metres (6.6 feet)
3 0：3.0 metres (9.8 feet)
5 0：5.0 metres (16.4 feet)
9 0：9.0 metres (29.5 feet)

Bently Nevada 330101-25-44-10-02-05 Description

The 3300 XL 8 mm Proximity Transducer System consists of:
One 3300 XL 8 mm probe.
One 3300 XL extension cable1, and
One 3300 XL Proximitor* Sensor.
The system provides an output voltage that is directly proportional to

thedistance between the probe tip and the observed conductive surface and

canmeasure both static (position) and dynamic (vibration) values. The

system'sprimary applications are vibration and position measurements on

fluid-filmbearing machines, as well as Keyphasor* reference and speed

measurements3 The 3300 XL 8 mm system delivers the most advanced

performance in our eddycurrent proximity transducer systems. The stand

ard 3300 XL 8 mm 5-metresystem also fully complies with the American

Petroleum institute's (APl) 670Standard (4th Edition) for mechanical configuration,

linear range, accuracy, andtemperature stability. All 3300 XL 8 mm proximity

transducer systems providethis level of performance and support complete

interchangeability of probesextension cables, and Proximitor sensors, eliminating

the need to match orbench calibrate individual components
Each 3300 XL 8 mm Transducer System component is backward-compatible andinterchangeable* with other non-XL 3300 series 5 mm and 8 mm transducersystem componentss. This compatibility includes the 3300 5 mm probe, forapplications in

which an 8 mm probe is too large for the available mountingspace
