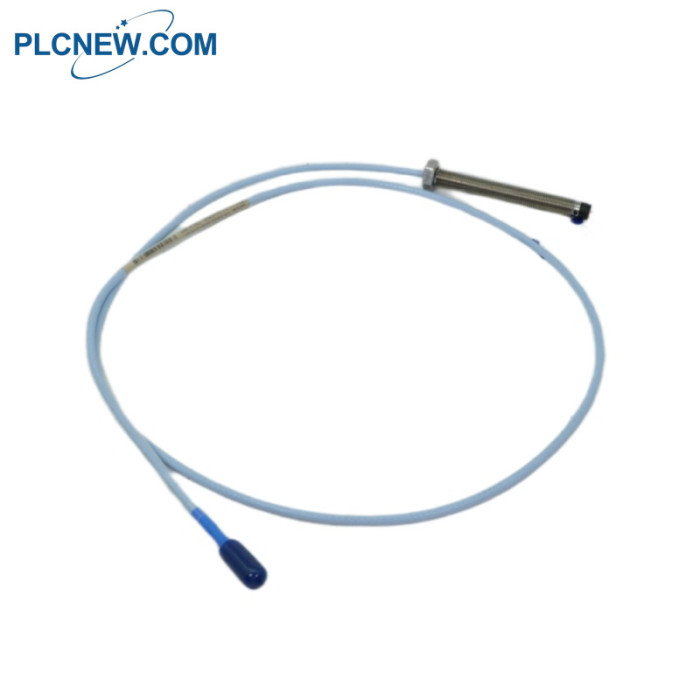

330101-00-27-10-02-00 Bently Nevada Proximity Probes
330101-00-27-10-02-00 Bently Nevada Description
The 3300 XL 8 mm Proximity Transducer System includes the following components:
One 3300 XL 8 mm probe
One 3300 XL extension cable
One 3300 XL Proximitor Sensor
This system provides an output voltage that is directly proportional to the distance between
the probe tip and the observed conductive surface, enabling the measurement of both static
(position) and dynamic (vibration) values. It is primarily used for vibration and position
measurements on fluid-film bearing machines, as well as for Keyphasor reference and speed
measurements.
The 3300 XL 8 mm system offers advanced performance in eddy current proximity transducer
technology. The standard 3300 XL 8 mm 5-meter system fully complies with the American Petroleum
Institute's (API) 670 Standard for mechanical configuration, linear range, accuracy, and temperature
stability. All components in the 3300 XL 8 mm system are fully interchangeable, eliminating the need
for component matching or individual calibration, thus ensuring consistent performance across the system.
330101-00-27-10-02-00 Bently Nevada Specifications
A: Unthreaded Length Option
Order in increments of 0.1 in.
Length configurations:
Maximum unthreaded length: 8.8 in.
Minimum unthreaded length: 0.0 in.
Example: 0 4 = 0.4 in.
B: Overall Case Length Option
Order in increments of 0.1 in.
Standard thread configurations:
Maximum case length: 9.6 in.
Minimum case length: 0.8 in.
Example: 2 4 = 2.4 in.
C: Total Length Option
05 0.5 meter (20 in)
10 1.0 meter (39 in)
50 5.0 meters (16.4 feet)
70 7.0 meters (23.0 feet)
