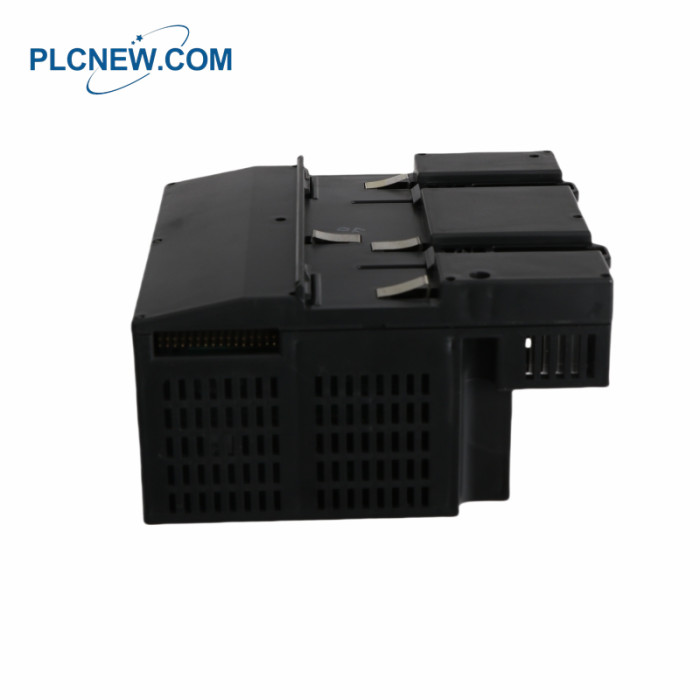

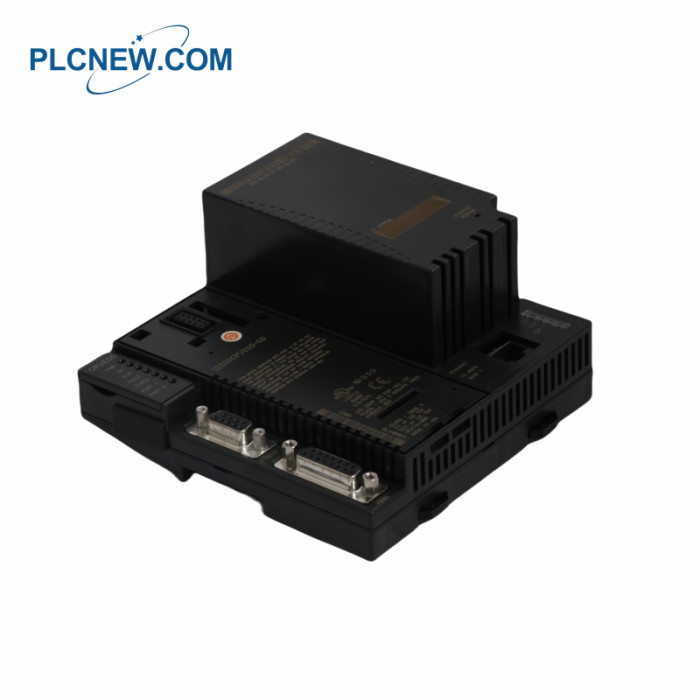

GE IC200CPUE05-CG CPU Module

GE IC200CPUE05-CG CPU Module

GE IC200CPUE05-CG Specification

Brand: GE Fanuc
Series: VersaMax
Part Number: IC200CPUE05-CG
Description: CPU module
Modules: 64
I/O Points: 2048
Serial Ports: RS-232, RS-485
Boolean Execution Speed: 0.8 milliseconds
Memory: 64 K bytes
SRTP Server: 8 connections
Ethernet Port: One (1) RJ45 port
Ethernet Transmission: 10 Mbps, full/half duplex
EGD Configuration: 32 configurations
EGD Exchange Limits: 100 data ranges per exchange, 1400 bytes of data per exchange
Installation: DIN Rail
Orientation: Vertical / Horizontal
Current: 650 milliamperes
Voltage: 3.3 Volts DC

GE IC200CPUE05-CG Description

The GE Fanuc Versamax  IC200CPUE05-CG CPU module comes with a super

capacitor that is able to power the memory for up to an hour. A run/stop switch is

present in the module for controlling the operations. The CPU is able to process

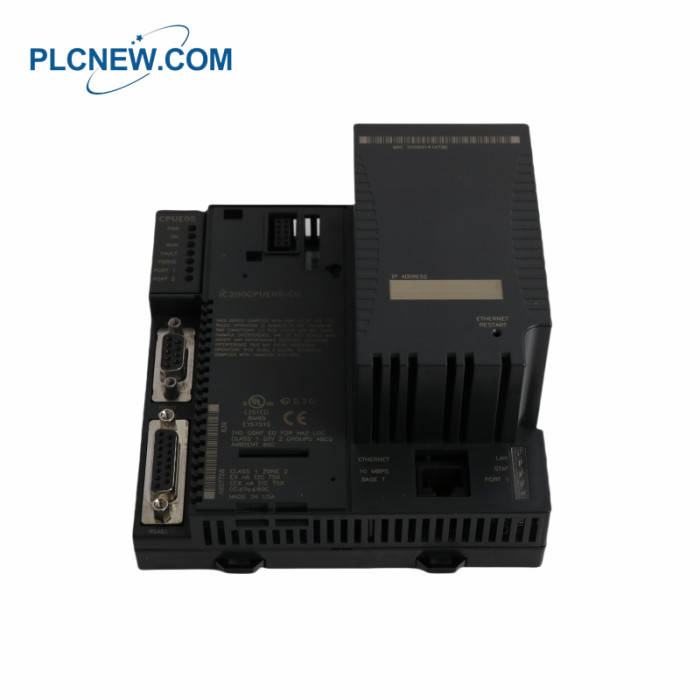

floating point data functions. The CPU module comes with 2 sets of LEDs on the

top corner and the lower right corner. It comes with the PWR, OK, RUN, FAULT,

FORCE, PORT 1, and PORT 2 LEDs that illuminates when power is present in the

module and to send different update messages to the users. The IC200CPUE05 CPU

module can be programmed by using the ladder diagram and instruction list

programming languages. The CPU features EGD time synchronization and

supports up to 8 SRTP server connections.

The  IC200CPUE05-CG is a Central Processing Unit (CPU) module that is part

of the VersaMax Programmable Logic Controller (PLC) product family. This

CPU, also termed as controller is used to execute the downloaded logic to the

CPU’s memory. This CPU has a compact form that supports horizontal or vertical

mounting onto a DIN rail and highly scalable.

The IC200CPUE05-CG has 64 Kbytes of user configurable memory and capable

of handling up to 64 modules or up to 2048 I/O points. It has embedded One (1)

9-pin sub-D connector that supports RS232 standard, One (1) 15-pin sub-D connector

that supports RS485 standard and One (1) Ethernet communication port that

supports transmission rate of 10Mbps, Full and Half duplex and capable of up to

Eight (8) SRTP connections and Thirty-Two (32) Ethernet Global Data (EGD)

configuration-based exchanges.
