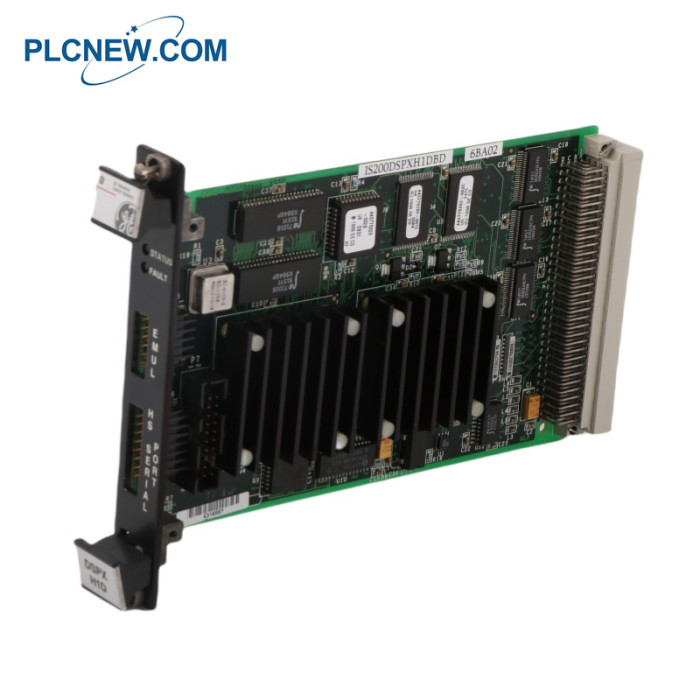

General Electric IS200DSPXH1DBC Digital Signal Processor Control Board

General Electric IS200DSPXH1DBC Digital Signal Processor Control Board

General Electric IS200DSPXH1DBC Specification

Part No.: IS200DSPXH1DBC
Manufacturer: General Electric
Country of Manufacture: United States of America (USA)
Temperature Operating: -30 to 65oC
PCB Coating: Conformal Coating
Manual: GEI-100488
Product Type: Digital Signal Processor Control Board
Availability: In Stock
Series: EX2100

General Electric IS200DSPXH1DBC Description

IS200DSPXH1DBC is a Digital Signal Processor Control Board developed

by GE. It is a part of EX2100 control system. The Digital Signal Processor

Control Board (DSPX) serves as the central control unit for various essential

functions within Innovation Series drives and the EX2100 Excitation Control

system. Its primary responsibilities include overseeing the regulation and

gating functions for both the bridge and motor and managing generator field

control functions for the Excitation Control.

Features
The board is equipped with advanced logic, processing capabilities, and interface

functions essential for seamless system operation. These functions are made possible

through the integration of high-performance digital signal processors (DSPs), standard

memory components, and an application-specific integrated circuit (ASIC) tailored to

perform custom logic functions.
Bridge and Motor Regulation: Orchestrates the regulation of the bridge and motor,

ensuring precise control over their operation. This includes managing voltage and

current levels to maintain optimal performance and stability.
Gating Functions: Gating functions are also handled, enabling precise switching of

power semiconductor devices to control the flow of electrical energy within the system.
EX2100 Excitation Control: In addition to its role in drive systems, the board plays a

crucial role in controlling generator field functions for the EX2100 Excitation Control

system. This involves regulating the excitation of the generator field to maintain desired

output characteristics.
Hardware Components: The board is equipped with state-of-the-art hardware components,

including a high-performance DSP, standard memory components for data storage and retrieval,

and an ASIC designed to execute specialized logic functions tailored to the specific requirements

of the control system.
