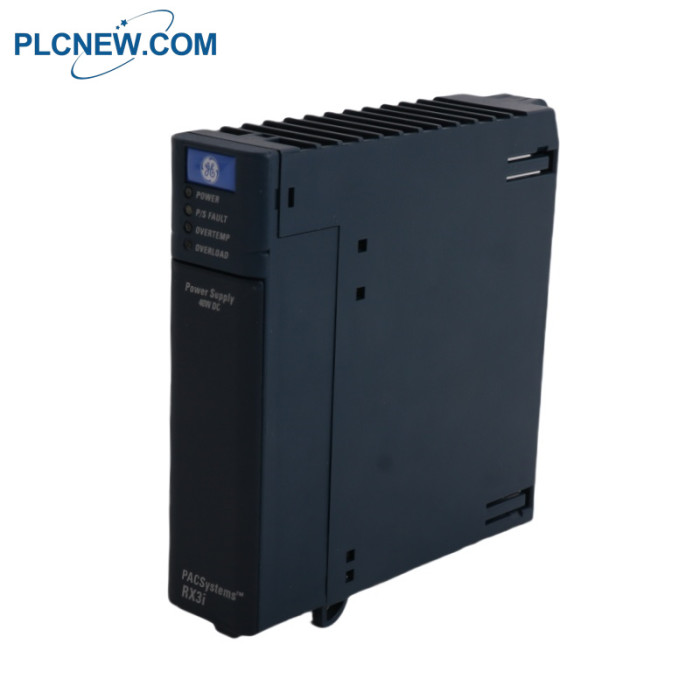

IC695PSD140 GE Power Supply module

IC695PSD140 GE Power Supply module

IC695PSD140 GE Specification

Brand:GE Fanuc
Series:PACSystem RX3i
Manufacturer:GE Fanuc
Part Number:IC695PSD140
Product Description:Power Supply module
Type:Power supply module
Input voltage range:85 to 264 VAC 100 to 300 VDC
Power Supply:40 Watts
Nominal Rated Voltage:120/240 VAC or 125 VDC
Input Voltage Range:18 to 30 VDC

IC695PSD140 GE Description

The IC695PSD140 is an Emerson Automation manufactured Power supply module

that is part of the PACsystem RX3i PAC platform. This module is specifically a Universal

base power supply that is compatible for use with any RX3i Central Processing Unit (CPU).

This module does not have jumper or DIP switches to define the module’s operation. The

IC695PSD140 occupies Two (2) slot of the chassis. It is powered by an external supply voltage

of 100-240 VAC or 0-125 VDC and it delivers an output power rated 40 Watts with 30 Watts

at 3.3 VDC; 30 Watts at 5VDC and 40 Watts at 24 VDC relay. Up to Four (4) multi-purpose

power supply can be installed to a RX3i universal backplane for use in application that require

redundancy and increased capacity modes. When configured in load sharing architecture, the

IC695PSD140’s On/ Off switch installed on the front panel must not be turned Off inadvertently.

The minimum number of power supply must be maintained On to qualify the system. Additionally,

for the same configuration, power supply modules must be connected to the same power source.

This power supply has output ripple of 150 mV and noise measured at 150 mV while the ride-through

 time is 20 ms. Power ride through time refers to the capability of the power supply to supply sufficient

power despite interruption in the supply line. When terminating connections to the power supply terminal,

recommended wire size range is #14 - 22 AWG wire. The maximum current each input terminal can

accommodate is 6 Amperes.
