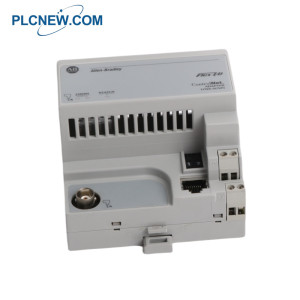

1794-ACN15 1794 ControlNet Adapter Module

1794-ACN15 1794 ControlNet Adapter Module

1794-ACN15 Specification

Part Number/Catalog No.1794-ACN15
Product Description:1794 ControlNet Adapter Module
Communication Port:One (1) ControlNet
Indicators:Comm A - red/grn; Comm B- red/grn; I/O Status - red/grn
Mounting:DIN Rail; Panel Mounting
DeviceNet cable:Belden RG-6/U or equivalent
Operating Temperature:0 to 55 C (32 to 131 F)
Storage Temperature:-40 to 85 C (-40 to 185 F)
Vibration:Tested 5 g @ 10-500Hz per IEC 68-2-6
Operating Shock:30 g peak acceleration, 11(+1)ms pulse width
Product Type:Redundant Media ControlNet Adapter
Voltage:24 Volts DC
Input Voltage Range:19.2 to 31.2 Volts DC

1794-ACN15 Description

The 1794-ACN15 is a Flex I/O communication adapter module that supports

ControlNet communication, enabling Flex I/O modules to transfer and receive I/O

data over a ControlNet network with a transmission rate of up to 5 Mbps.

The 1794-ACN15 features a single ControlNet port that uses Belden RG-6/U cabling.

In addition to facilitating ControlNet communication, this module also converts incoming

power from the Flex I/O power supply into backplane power, which is used to operate

adjacent Flex I/O modules according to their designed functions.

The module includes built-in status indicators, such as:
I/O Status (red/green)
Comm A (red/green)
Comm B (red/green)

It operates with an input supply voltage of 19.2-31.2 VDC and a current of 400 mA,

while providing an output voltage and current to the bus of 5 VDC, 640 mA. The module

can withstand an inrush current of 14 A for 2 ms.

The 1794-ACN15 has an isolation voltage of 50 V (continuous), with Basic Insulation Type.

 It is type-tested at 860 V AC for 60 seconds for isolation between power to system, power

to ControlNet, and ControlNet to system. However, there is no isolation between ControlNet

channels. The module has a power dissipation of 3.4 W at 19.2 VDC.

When connecting the power supply to the 1794-ACN15, the recommended wire specifications are:
For single-wire connections: 0.33-2.5 mm² (22-12 AWG) solid or stranded copper wire, rated

at 75 °C (167 °F) or higher, with a maximum insulation thickness of 1.2 mm (3/64 in).

For double-wire connections: 0.33-1.3 mm² (22-16 AWG) solid or stranded (not intermixed)

copper wire, rated at 75 °C (167 °F) or higher, with a maximum insulation thickness of 1.2 mm (3/64 in).

This module is designed for reliable performance in industrial environments, ensuring efficient

communication and power distribution within the Flex I/O system.
